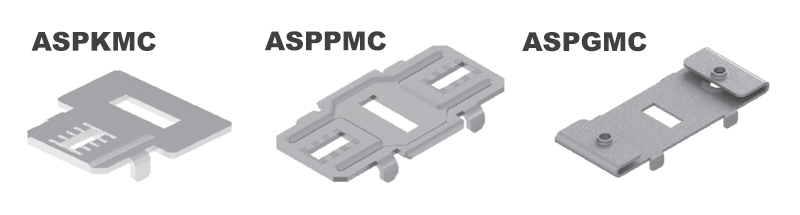

ASPKMC, ASPPMC, ASPGMC
Adapter for PV module
Application

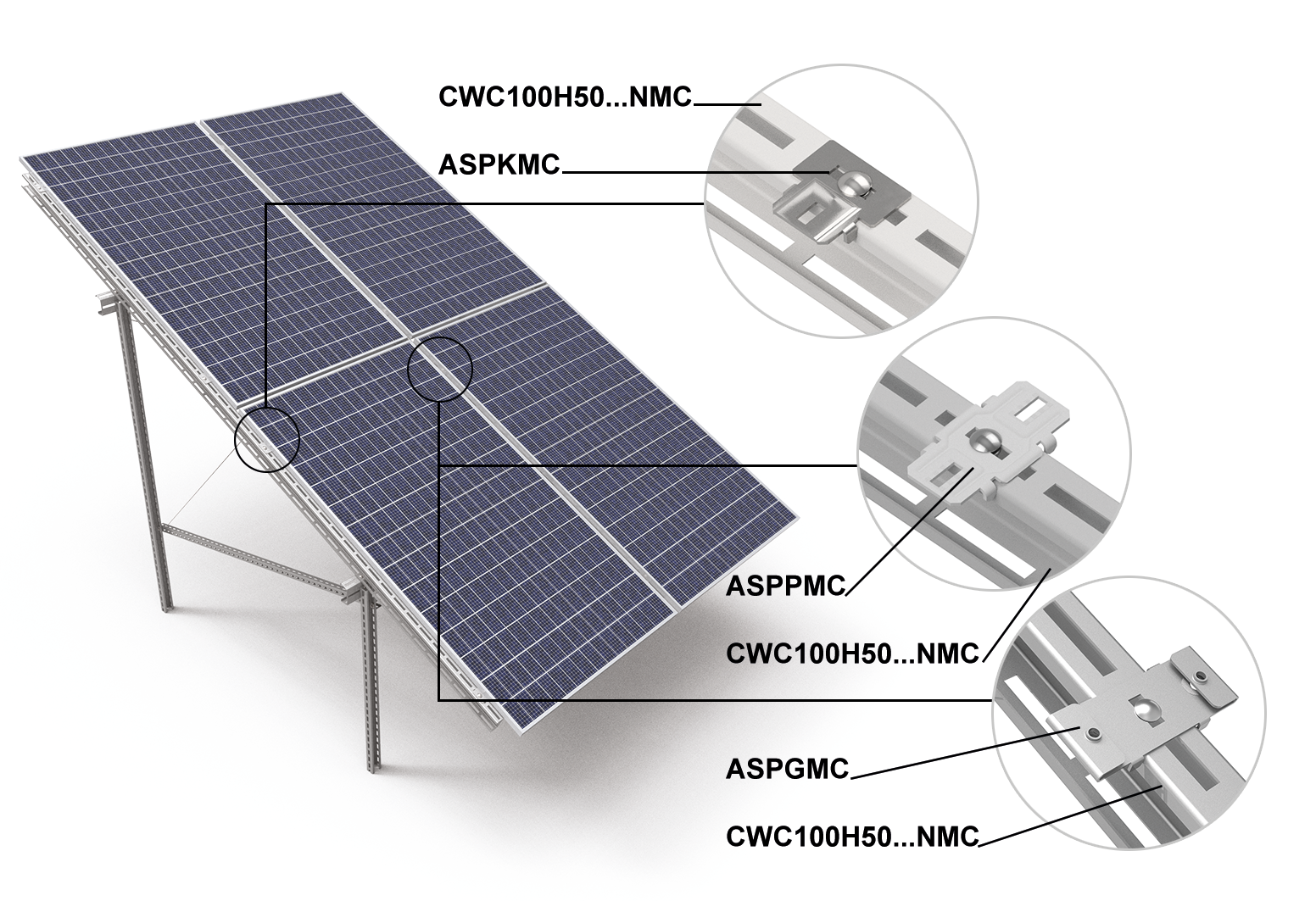

Mounting the panels to the structure using the mounting holes in the lower shelf of the panel frame.
Advantages
• Stable panel mounting with screws directly to the structure without the need to use side mounting clamps
• By mounting the panels using the holes in the frame, there is no need to check the permitted mounting zones on the panel frame
• For mounting to the structure, use 1 set of SGKFM10x20
• For panel mounting, use 1 set of SGKFM8x14
Material
• Mounting system materials:
S350GD steel with coating:
Magnelis®, MagiZinc®, PosMAC
