PV Installation Instructions

Home & PV Installation Instructions

Freestanding structures

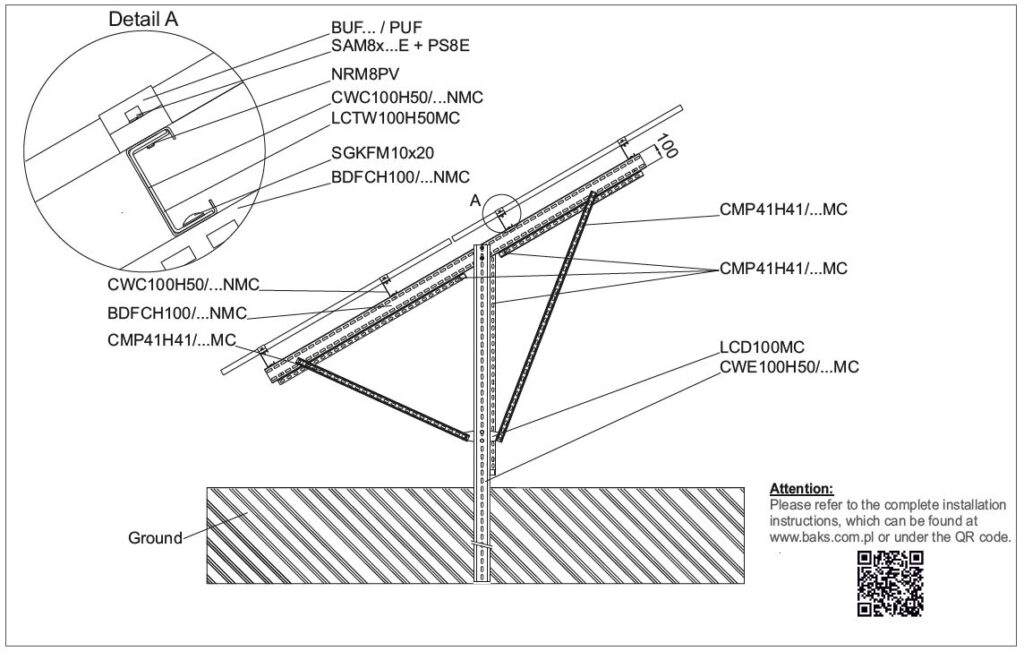

Advantages of freestanding structures for the installation of photovoltaic panels:

– dense profile perforation provides a wide adjustment range without drilling
– longitudinal profile perforation allows for smooth adjustment of the inclination angle of the system in relation to the ground within the range of 20-35 degrees
– possibility of assembling the system – with only one type of screws – SGKFM10x20
– the perforation of the profiles reduces the weight of the system – without reducing their strength properties. This means that installers do not have to carry heavy profiles and their work is more efficient.
– dense perforation allows panels to be mounted anywhere without drilling
– by using u-profiles, there is a possibility of laying cables in it safely
– thanks to the use of the SPV wire clip, the cables laid in the CWC100H50..NMC support channel are protected
against falling out and using unaesthetic and nondurable cable ties can be avoided
– the top perforation of the CWC100H50…NMC support channel allows for quick installation of clamps when using NRM8PV channel nuts

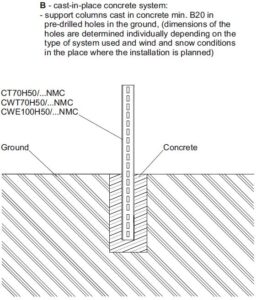

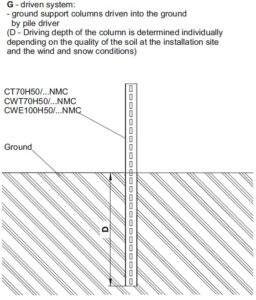

Recommended ways of mounting freestanding systems to the ground

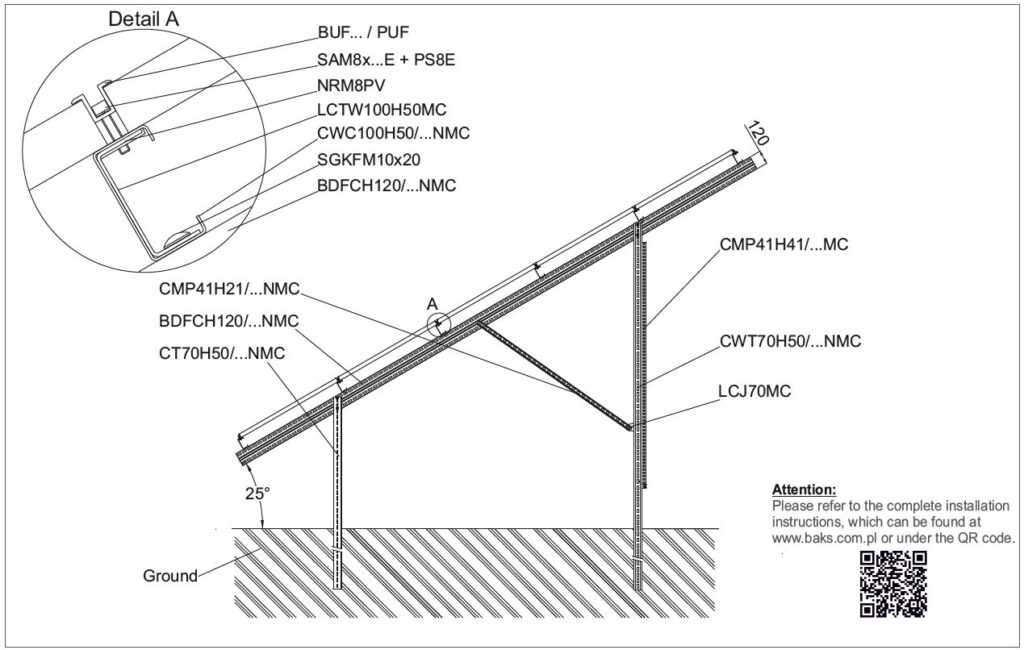

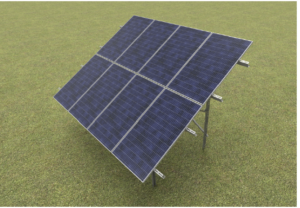

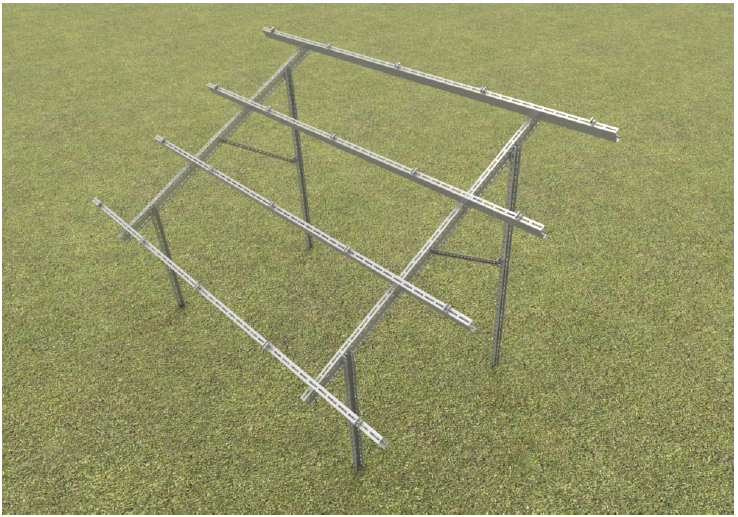

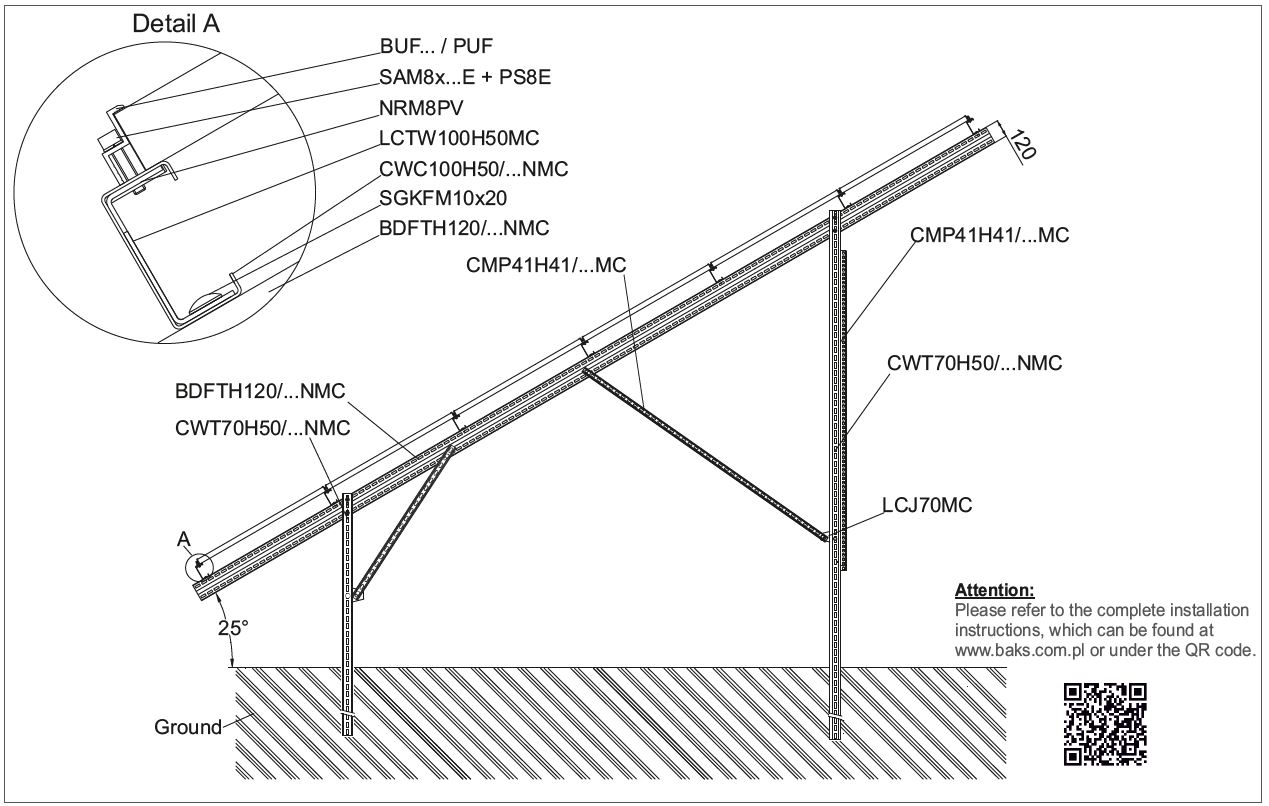

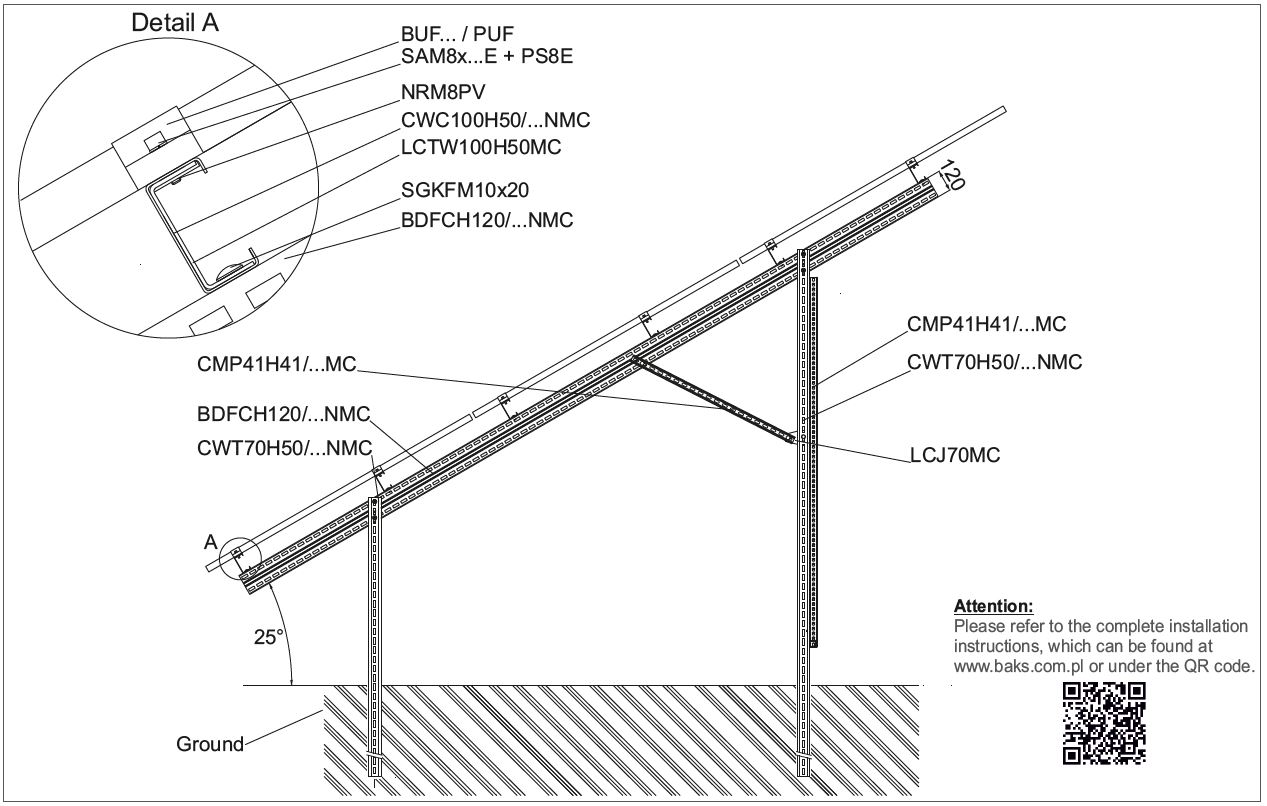

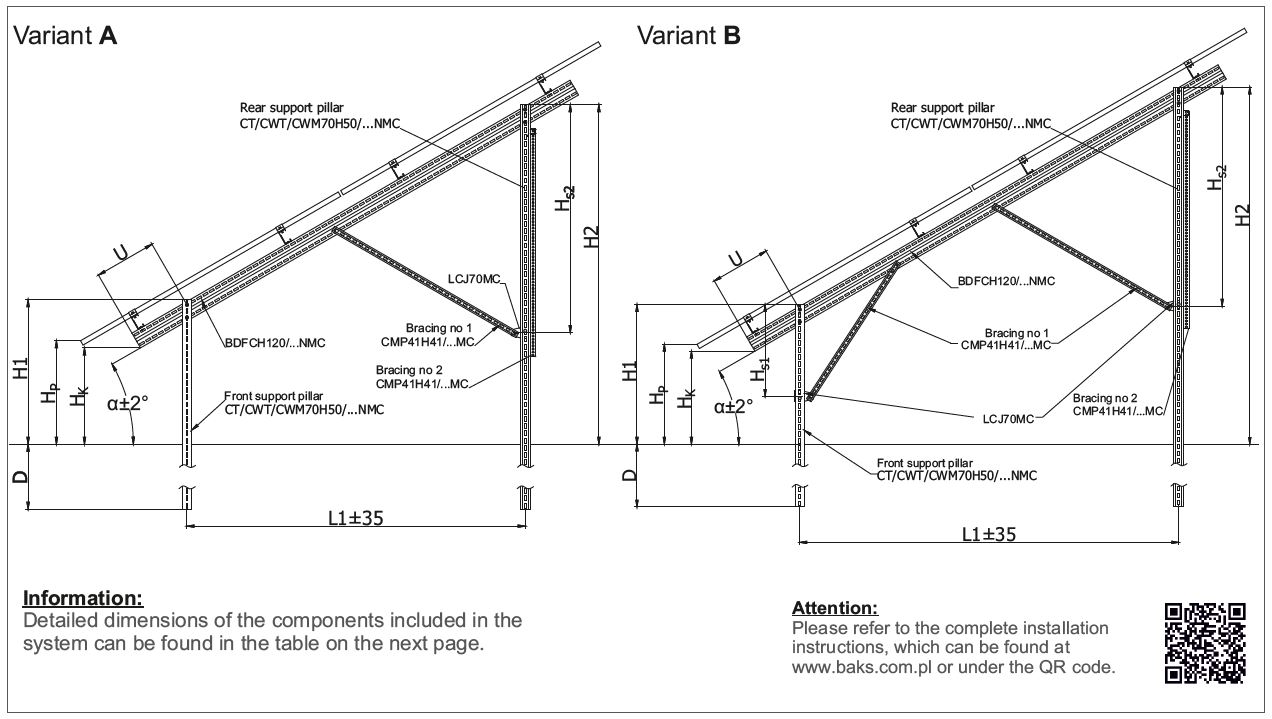

System: W-V2G2-25°

Download assembly instructions:
W-V2G2
W-V2B2
W-V2S2
W-V2K2

Structure – description:
Complete support system for fixing two rows of panels
in a vertical arrangement

Technical description:
Materials of the support system:
MC- Coated structural steel:
Magnelis®, MagiZinc®, PosMAC
A- Aluminium
E- Stainless steel
F- Steel in zinc flake coating
System tested for strength.

Arrangement of the modules:
· vertical – V

Ground conditions:
· soil with good/high load capacity

System assembly variants:
· W-H2G2 system – rammed into the ground
(anchorage depth depends on ground conditions)

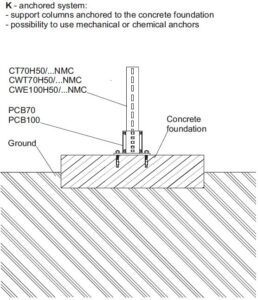

· W-H2K2 system – support posts anchored
to the concrete foundation
· W-H2B2 system – support posts poured with concrete
min. B20 in the holes made in the ground
(size of the holes depends on the ground conditions)

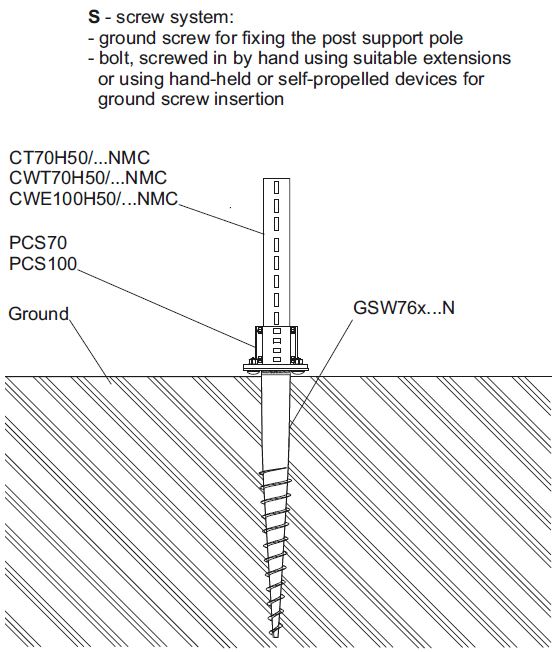

· W-H2S2 system – on request, a screw screwed into the
ground for fixing of the support posts
· W-H2…2-WZ system – east-west option

Warranty
BAKS provides a 10 year warranty period for the components
included in the support structure – only if all conditions of the
manufacturer’s warranty are met.
The warranty can be extended.

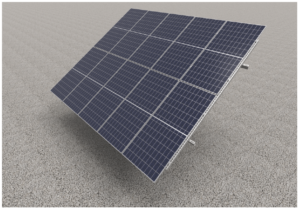

System: W-V2G2-BI-25°

Download assembly instructions:
W-V2S2-BI
W-V2K2-BI
W-V2G2-BI
W-V2B2-BI

Structure – description:

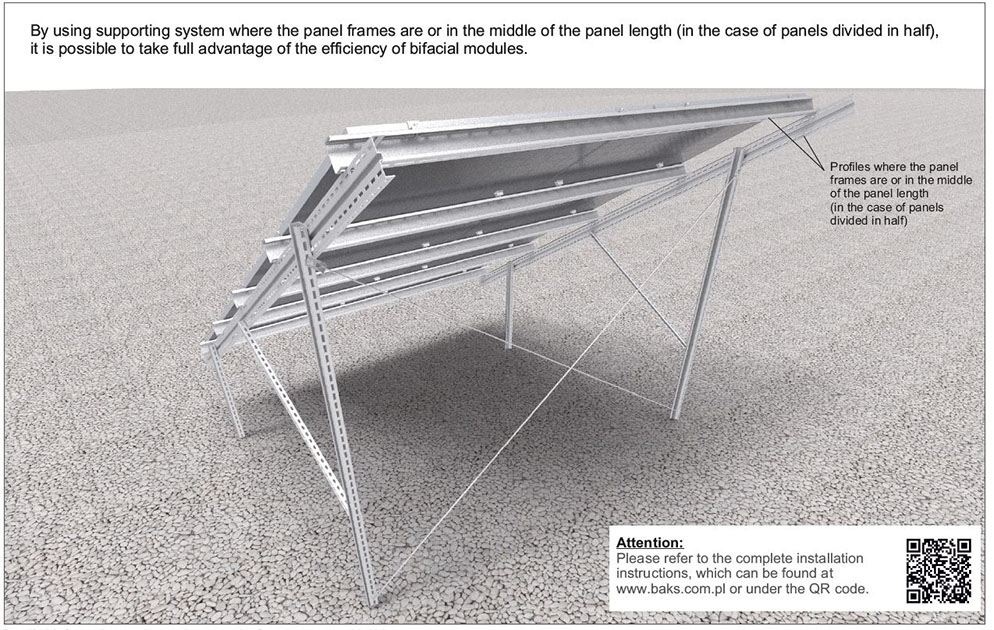

Complete support system for fixing bifacial
panels, which use sunlight reflected from
the ground

Technical description:
Materials of the support system:
MC- Coated structural steel:
Magnelis®, MagiZinc®, PosMAC
A- Aluminium
E- Stainless steel
F- Steel in zinc flake coating

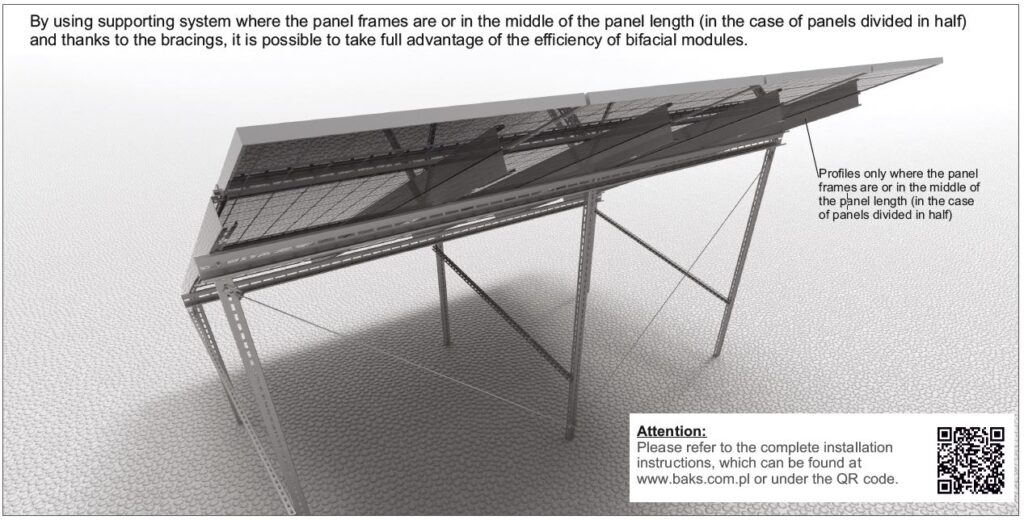

Overview design.

Arrangement of the modules:
· horizontal – H

Ground conditions:
· soil with good/high load capacity

Advantages:
– the use of asymmetrical profiles with one side bent,
allows a suitable system angle and a plane prepared
for direct installation of profiles on which the modules are
to be placed
– the profiles with the bent side are mounted directly
to the support columns without additional mounting
elements mounting elements
– made of Magnelis®

System assembly variants:
· W-V2G2-BI system – rammed into the ground
(anchorage depth depends on ground conditions)
· W-V2K2-BI system – support posts anchored
to the concrete foundation
· W-V2B2-BI system – support posts poured with concrete
min. B20 in the holes made in the ground
(size of the holes depends on the ground conditions)
· W-V2S2-BI system – on request, a screw screwed into
the ground for fixing of the support posts

Warranty
BAKS provides a 10 year warranty period for the components
included in the support structure – only if all conditions of the
manufacturer’s warranty are met.
The warranty can be extended.

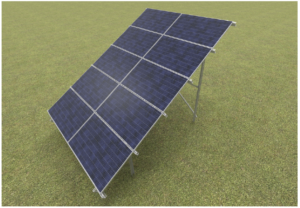

System: W-H4G2-25° (optionally 30°)

Download assembly instructions:
W-H4B2
W-H4G2
W-H4K2
W-H4S2

Structure – description:
Complete support system for fixing four rows of panels
in a horizontal arrangement

Technical description:
Materials of the support system:
MC- Coated structural steel:
Magnelis®, MagiZinc®, PosMAC
A- Aluminium
E- Stainless steel
F- Steel in zinc flake coating
System tested for strength.

Arrangement of the modules:
· horizontal – H

Ground conditions:
· soil with good/high load capacity

Construction assembly variants:
· W-H4G2 system – rammed into the ground
(anchorage depth depends on ground conditions)
· W-H4K2 system – support posts anchored
to the concrete foundation
· W-H4B2 system – support posts poured with concrete
min. B20 in the holes made in the ground
(size of the holes depends on the ground conditions)
· W-H4S2 system – on request, a screw screwed into the
ground for fixing of the support posts
· W-H4…2-WZ system – east-west option

Warranty
BAKS provides a 10 year warranty period for the components
included in the support structure – only if all conditions of the
manufacturer’s warranty are met.
The warranty can be extended.

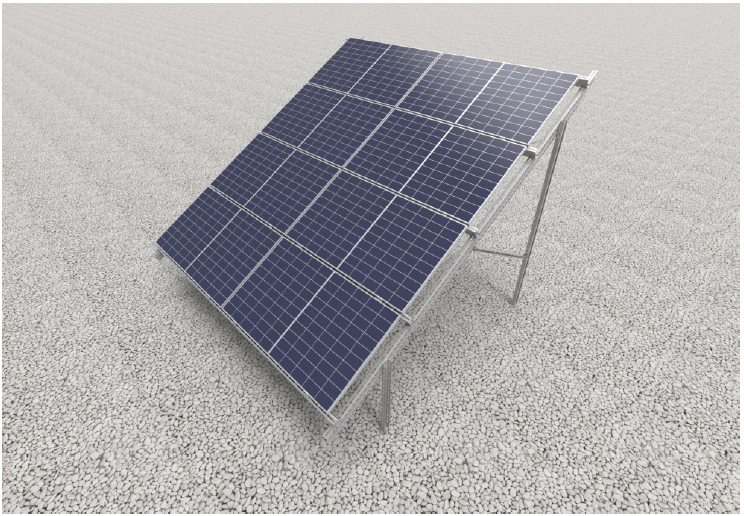

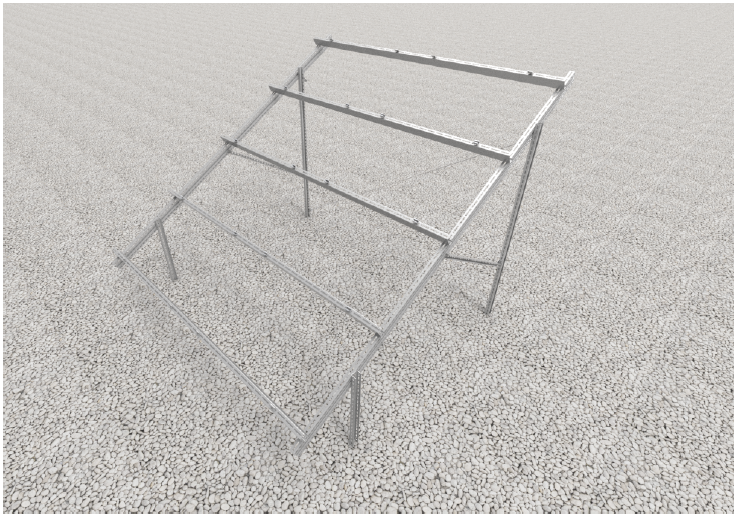

System: W-H4G2-BI-25° (optionally 30°)

Download assembly instructions:
W-H4B2-BI
W-H4G2-BI
W-H4K2-BI
W-H4S2-BI

Structure – description:
Complete support system for fixing bifacial
panels, which use sunlight reflected from
the ground

Technical description:
Materials of the support system:
MC- Coated structural steel:
Magnelis®, MagiZinc®, PosMAC
A- Aluminium
E- Stainless steel
F- Steel in zinc flake coating
Overview design.

Arrangement of the modules:
· horizontal – H

Ground conditions:
· soil with good/high load capacity

System assembly variants:
· W-H4G2-BI system – rammed into the ground
(anchorage depth depends on ground conditions)
· W-H4K2-BI system – support posts anchored
to the concrete foundation
· W-H4B2-BI system – support posts poured with concrete
min. B20 in the holes made in the ground
(size of the holes depends on the ground conditions)
· W-H4S2-BI system – on request, a screw screwed into the
ground for fixing of the support posts

Warranty
BAKS provides a 10 year warranty period for the components
included in the support structure – only if all conditions of the
manufacturer’s warranty are met.
The warranty can be extended.

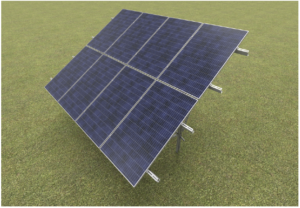

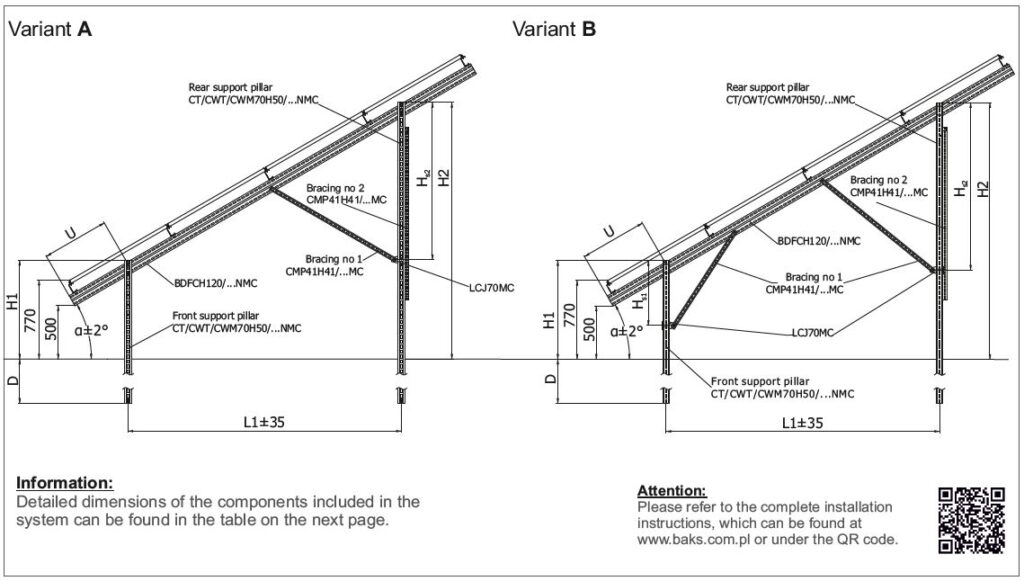

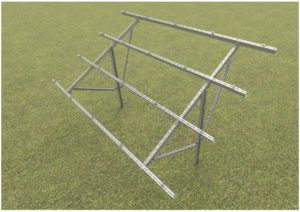

System: W-V2G1-25°

Download assembly instructions:
W-V2S1
W-V2K1
W-V2G1
W-V2B1

System description:
Complete support system for fixing two rows
of panels in a vertical arrangement

Technical description:
Materials of the support system:
MC- Coated structural steel:
Magnelis®, MagiZinc®, PosMAC
A- Aluminium
E- Stainless steel
F- Steel in zinc flake coating
System tested for strength.

Arrangement of the modules:
· vertical – V

Ground conditions:
· soil with good/high load capacity

System assembly variants:
· W-V2G1 system – rammed into the ground
(anchorage depth depends on ground conditions)
· W-V2K1 system – support posts anchored
to the concrete foundation
· W-V2B1 system – support posts poured with concrete
min. B20 in the holes in the ground
(size of the holes depends on the ground conditions)
· W-V2S1 system – on request, a screw screwed into
the ground for fixing of the support posts
· W-V2…1-WZ system – east-west option

Warranty
BAKS provides a 10 year warranty period for the components
included in the support structure – only if all conditions of the
manufacturer’s warranty are met.
The warranty can be extended.

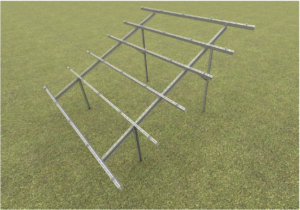

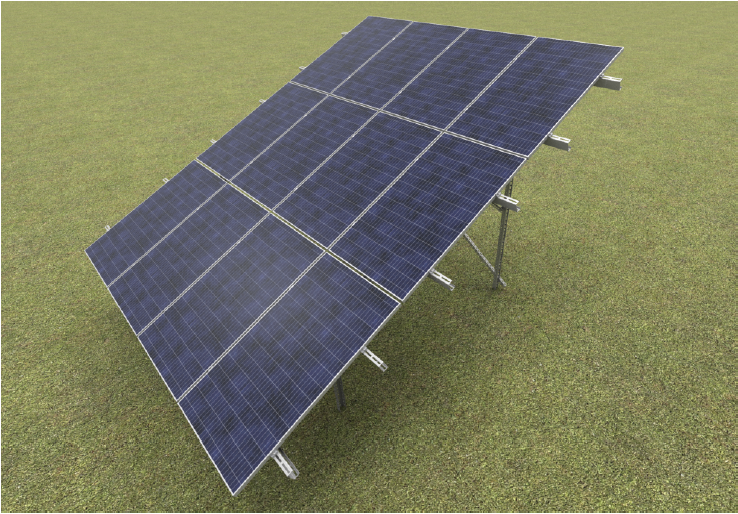

System: W-V3G2-25°

Download assembly instructions:
W-V3S2
W-V3K2
W-V3G2
W-V3B2

Structure – description:
Complete support system for fixing three rows of panels
in a vertical arrangement

Technical description:
Materials of the support system:
MC- Coated structural steel:
Magnelis®, MagiZinc®, PosMAC
A- Aluminium
E- Stainless steel
F- Steel in zinc flake coating
System tested for strength.

Arrangement of the modules:
· vertical – V

Ground conditions:
· soil with good/high load capacity

System assembly variants:
· W-V3G2 system – rammed into the ground
(anchorage depth depends on ground conditions)
· W-V3K2 system – support posts anchored
to the concrete foundation
· W-V3B2 system – support posts poured with concrete
min. B20 in the holes made in the ground
(size of the holes depends on the ground conditions)
· W-V3S2 system – on request, a screw screwed
into the ground for fixing of the support post
· W-V3…2-WZ system – east-west option

Warranty
BAKS provides a 10 year warranty period for the components
included in the support structure – only if all conditions of the
manufacturer’s warranty are met.
The warranty can be extended.

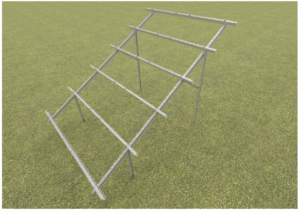

System: W-H5G2-25°

Download assembly instructions:
W-H5S2
W-H5K2
W-H5G2
W-H5B2

Structure – description:
Complete support system for fixing five rows of panels
in a horizontal arrangement

Technical description:
Materials of the support system:
MC- Coated structural steel:
Magnelis®, MagiZinc®, PosMAC
A- Aluminium
E- Stainless steel
F- Steel in zinc flake coating
System tested for strength.

Arrangement of the modules:
· horizontal – H

Ground conditions:

· soil with good/high load capacity

System assembly variants:
· W-H5G2 system – rammed into the ground
(anchorage depth depends on ground conditions)
· W-H5K2 system – support posts anchored
to the concrete foundation
· W-H5B2 system – support posts poured with concrete
min. B20 in the holes made in the ground
(size of the holes depends on the ground conditions)
· W-H5S2 system – on request, a screw screwed into
the ground for fixing of the support posts
· W-H5…2-WZ system – east-west option

Warranty
BAKS provides a 10 year warranty period for the components
included in the support structure – only if all conditions of the
manufacturer’s warranty are met.
The warranty can be extended.

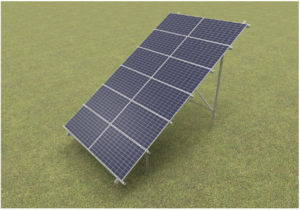

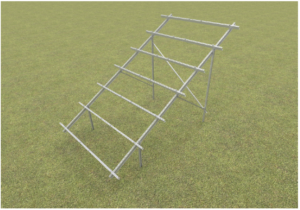

System: W-H6G2-25°

Download assembly instructions:
W-H6S2
W-H6K2
W-H6G2
W-H6B2

Structure – description:
Complete support system for fixing six rows of panels
in a horizontal arrangement

Technical description:
Materials of the support system:
MC- Coated structural steel:
Magnelis®, MagiZinc®, PosMAC
A- Aluminium
E- Stainless steel
F- Steel in zinc flake coating
System tested for strength.

Arrangement of the modules:
· horizontal – H

Ground conditions:
· soil with good/high load capacity

Construction assembly variants:
· W-H6G2 system – rammed into the ground
(anchorage depth depends on ground conditions)
· W-H6K2 system – support posts anchored
to the concrete foundation
· W-H6B2 system – support posts poured with concrete
min. B20 in the holes made in the ground
(size of the holes depends on the ground conditions)
· W-H6S2 system – on request, a screw screwed
into the ground for fixing of the support posts
· W-H6…2-WZ system – east-west option

Warranty
BAKS provides a 10 year warranty period for the components
included in the support structure – only if all conditions of the
manufacturer’s warranty are met.
The warranty can be extended.

Carporty

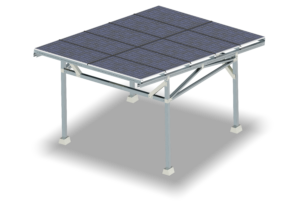

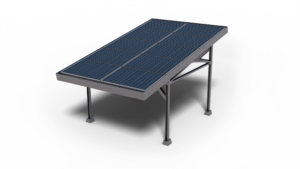

System: K1

Instructions:
K1
K1O

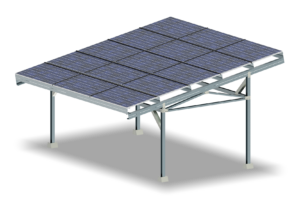

Design Description:

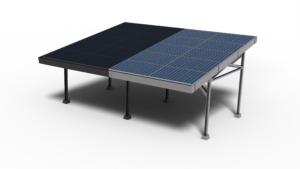

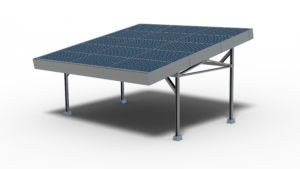

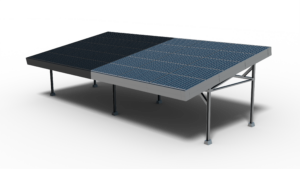

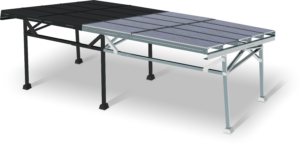

Freestanding carport structure on 4 vertical legs enabling car entry/exit and safe parking.
• Panels from various manufacturers can be used, with dimensions: for K1 – 1722×1134

Advantages:

• Delivery on EUR pallets
• The length of elements on a pallet does not exceed 3000mm
• Suitable for storage on warehouse racks, which prevents staining and discoloration of structural elements.
• The carport is manufactured from 30μm thick Magnelis-coated steel elements without welding.
• The carport is suitable for mounting flashings and gutters.
• Installation of the carport on concrete or paving stones does not require foundations.
• Installation of the carport on regular ground using small, standard, prefabricated foundations weighing approximately 100kg.
• The carport is suitable for self-assembly by 2-3 people.
• Strength-tested solutions
• Possibility of expanding the carport as needed

Module layout:
· horizontal

Technical description:

Mounting system materials:
MC – made of structural steel with a Magnelis® coating,
MagiZinc®, PosMac (structural profiles)
L – painted in black RAL9005
F – Zinc flake galvanized steel (screws for fastening the structure)
• Structure tested for strength

Construction assembly variants:
• anchored

Warranty
BAKS provides a 10-year warranty on the components of the supporting structure, provided all manufacturer’s warranty conditions are met. Warranty extensions are available upon meeting additional requirements.

System: DK1

Instructions:
DK1O

Construction description:

Single carport extension (for one car)

Advantages:
• Free parking for one or two vehicles
• Vehicle protection from weather conditions
• Durability-tested structure
• Modern design
• Painted finish available
• Simple and quick assembly thanks to profiles with dedicated openings
• Dedicated photovoltaic module size for carports
• Lightweight and durable structure
• Prefabricated foundations are lighter than traditional solutions
• Rubber seals can be used between panels
• Can be combined into rows

Opis techniczny
• Support system materials:
MC – made of structural steel with a coating
Magnelis®, MagiZinc®, PosMac (structural profiles)
L – painted in black RAL9005
E – Stainless steel
F – Zinc flake galvanized steel
(bolts for fastening the structure)
• Structure tested for strength

Warianty montażowe konstrukcji:

• anchored

Warranty:
BAKS provides a 10-year warranty on the components of the supporting structure, provided all manufacturer’s warranty conditions are met. Warranty extensions are available upon meeting additional requirements.

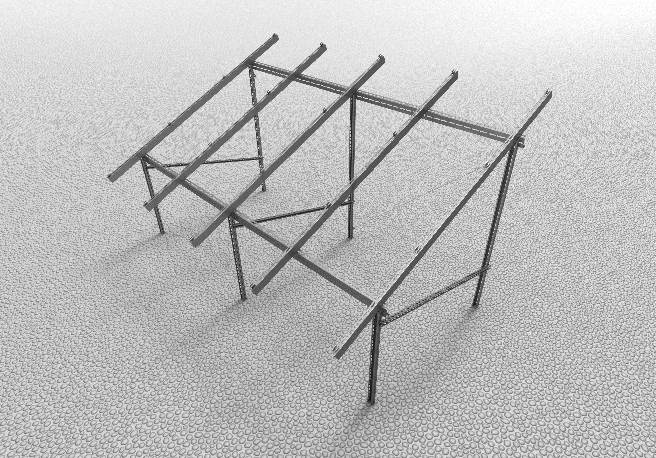

System: K2

Instructions:
K2
K2O

Design Description:

Freestanding carport structure on 4 vertical legs for entry/exit and safe parking.

Freestanding carport structure on 4 vertical legs for entry/exit and safe parking.
• Panels from various manufacturers can be used, with dimensions: for K2 – 1903×1134

Advantages:

• Delivery on EUR pallets
• The length of elements on a pallet does not exceed 3000mm
• Suitable for storage on warehouse racks, which prevents staining and discoloration of structural elements.
• The carport is manufactured from 30μm thick Magnelis-coated steel elements without welding.
• The carport is suitable for mounting flashings and gutters.
• Installation of the carport on concrete or paving stones does not require foundations.
• Installation of the carport on regular ground using small, standard, prefabricated foundations weighing approximately 100kg.
• The carport is suitable for self-assembly by 2-3 people.
• Strength-tested solutions
• Possibility of expanding the carport as needed

Module layout:
· horizontal

Technical Description:
Materiały systemu montażowego:
MC- wykonanie ze stali konstrukcyjnej w powłoce Magnelis®,
MagiZinc®, PosMac (profile konstrukcyjne)
L- lakierowanie w kolorze czarnym RAL9005
F- Stal cynkowana metodą cynku płatkowego (śruby do skręcania konstrukcji)

• The structure has been tested for strength

Construction assembly variants:
• anchored

Warranty
BAKS provides a 10-year warranty on the components of the supporting structure, provided all manufacturer’s warranty conditions are met. Warranty extensions are available upon meeting additional requirements.

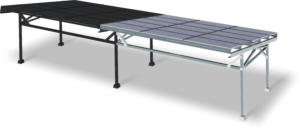

System: DK2

Instructions:
DK2
DK2O

Construction description:

Double carport extension (for two cars)

Advantages:

• Free parking for one or two vehicles
• Vehicle protection from weather conditions
• Durability-tested structure
• Modern design
• Painted finish available
• Simple and quick assembly thanks to profiles with dedicated openings
• Dedicated photovoltaic module size for carports
• Lightweight and durable structure
• Prefabricated foundations are lighter than traditional solutions
• Rubber seals can be used between panels
• Can be combined into rows

Technical description

• Support system materials:
MC – made of coated structural steel
Magnelis®, MagiZinc®, PosMac (structural profiles)
L – painted black RAL9005
E – Stainless steel
F – Zinc flake galvanized steel
(bolts for fastening the structure)

• Structure tested for strength

Construction assembly variants:

• anchored

Warranty:

BAKS provides a 10-year warranty on the components of the supporting structure, provided all manufacturer’s warranty conditions are met. Warranty extensions are available upon meeting additional requirements.

Slooping roofs

Advantages of mounting systems for the installation of photovoltaic panels on sloping roofs

– variable adjustment and longitudinal profile perforation allows for trouble-free and quick installation of the system even in case of unevenness on the roof
– specially profiled holders provide a stable and strong connection to the roof system or plating
– all system elements made of stainless steel are subjected to abrasive treatment, which guarantees an aesthetic appearance
– the system elements are ready for use after taking them out of the packaging and do not require additional completion
– products made in Poland

For inclined roofs covered with:

– ceramic and concrete tiles
– tile sheet
– plain tile
– interlocking metal sheets
– bituminous shingles
– roofing felt
– membrane

It is possible to use profiles interchangeably:
– PAL40H40/… (aluminum)
– PAL30H32/… (aluminum)*
*limited to 1 wind zone and 1, 2 and 3 snow zones
– CWP40H35/…MC (coated steel: Magnelis®, MagiZinc®, PosMAC)

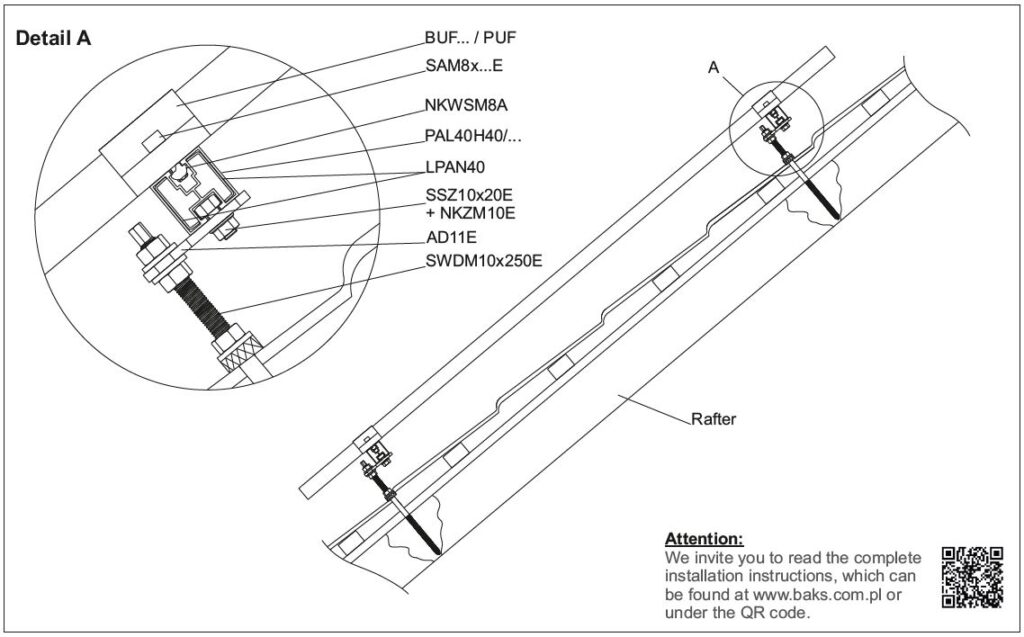

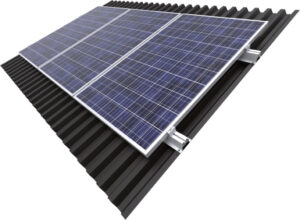

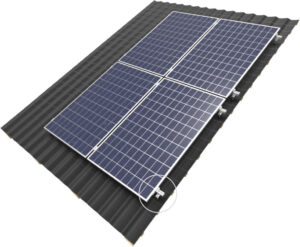

System: DS-V1N on sloping roofs covered with metal tiles sheets or corrugated metal sheets

Installation manual for download – DS-V1N

Structure description
Complete support system for any number of PV panels in a
vertical arrangement on a sloping roof covered with metal
tiles sheets or corrugated metal sheets

Technical description:
Materials of the support system:
A- Aluminium
E- Stainless steel
MC- Coated structural steel:
Magnelis®, MagiZinc®, PosMAC
System tested for strength.
Installation of double-threaded screws for roof rafters.

Arrangement of the modules:
· horizontal – H · vertical – V

Wersje wykonania:
– profil do montażu paneli PAL40H40
– profil do montażu paneli PAL30H32
– profil do montażu paneli CWP40H35MC

Design versions:
– Panel mounting profile PAL40H40
– Panel mounting profile PAL30H32
– Panel mounting profile CWP40H35MC
Advantages:
– wide range of height adjustment of aluminium profiles in
relation to the roof thanks to the long, threaded part of
the screw
– additional adjustment of the aluminium profiles thanks to the
longitudinal hole in the AD…E adapter
– the elements are made of stainless steel and aluminium,
which guarantees very high corrosion resistance
– high stability of the system thanks to the aluminium profile
with a specially profiled section
– double-threaded screws fitted with rubber to ensure basic
sealing of the hole in the roof tiles

Warranty
BAKS provides a 10 year warranty period for the components
included in the support structure only if all conditions of the
manufacturer’s warranty are met

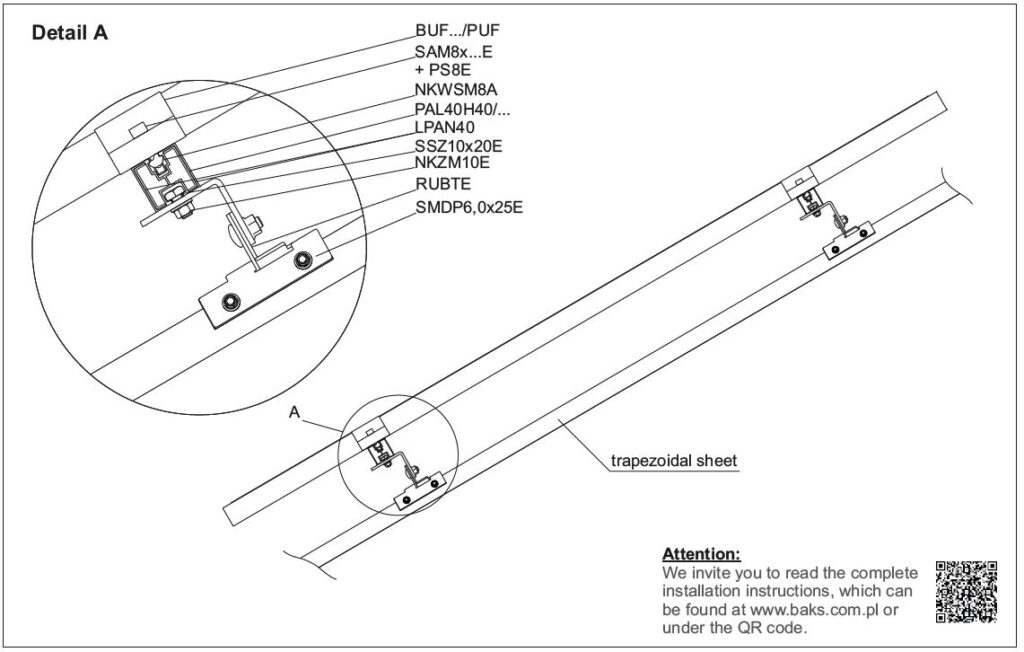

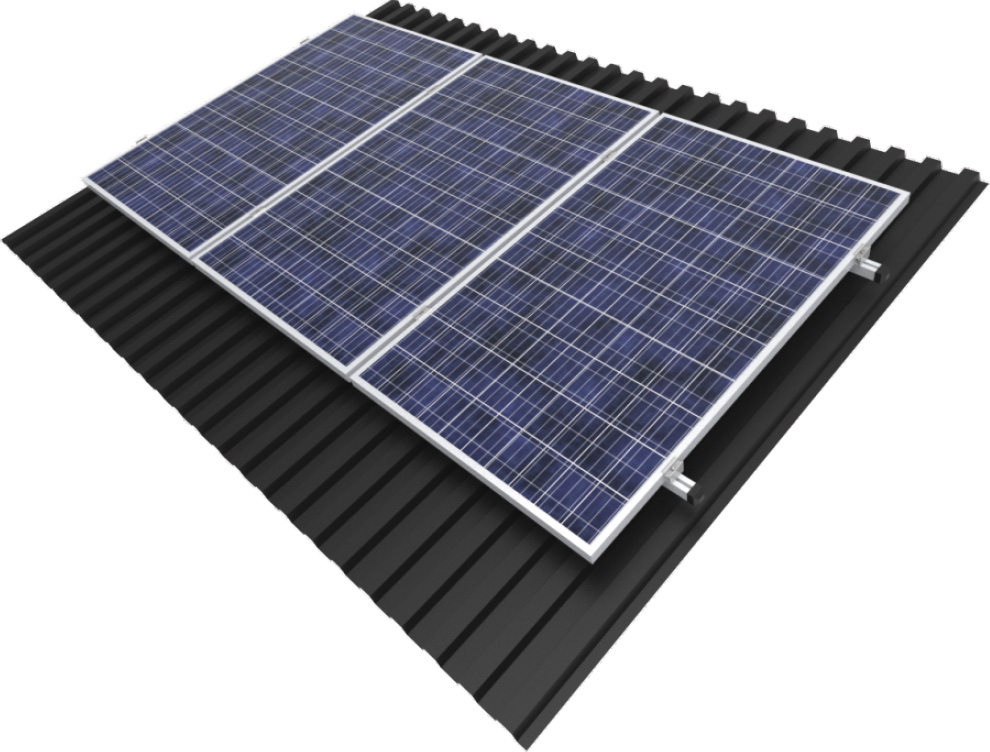

System: DS-V2N on sloping roofs covered with sheet metal seam plates

Installation manual for download – DS-V2N

Structure description
Complete support system for any number of PV panels in
a vertical arrangement on a sloping roof covered with sheets
metal seam plates

Technical description:
Materials of the support system:
A- Aluminium
E- Stainless steel
MC- Coated structural steel:
Magnelis®, MagiZinc®, PosMAC
System tested for strength.
The holders should be mounted to the first three seams, counted
from the edge of each row of panels and then every second seam.

Arrangement of the modules:
· horizontal – H · vertical – V

Design versions:

– Panel mounting profile PAL40H40
– Panel mounting profile PAL30H32
– Panel mounting profile CWP40H35MC

Advantages:
– installation of the system to the seam without interfering with
the system of the roofing
– quick installation of the holders without the need to locate the
rafters
– different versions of holders for sheets metal to ensure stable
installation with most sheet metal seam plates systems
– the elements are made of stainless steel and aluminium,
which guarantees very high corrosion resistance
– high stability of the system thanks to the aluminium profile
with a specially profiled section

Warranty
BAKS provides a 10 year warranty period for the components
included in the support structure only if all conditions of the
manufacturer’s warranty are met

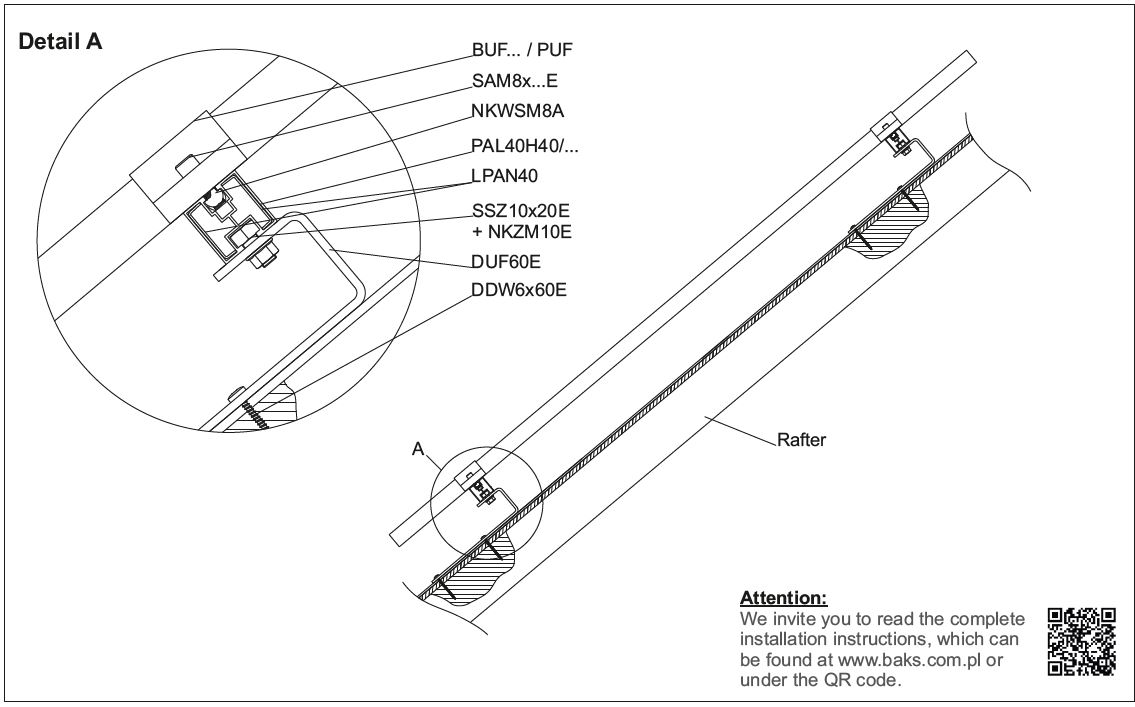

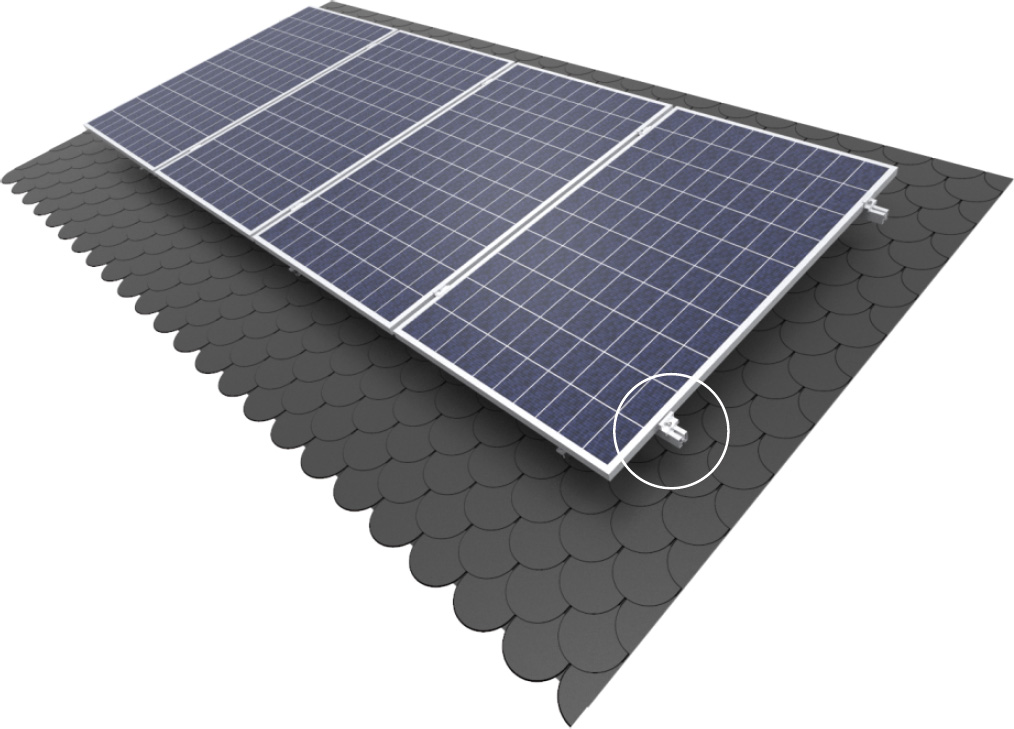

System: DS-V3N on sloping roofs covered with bituminous tiles

Installation manual for download – DS-V3N

Structure description
Complete support system for any number of PV panels in
a vertical arrangement on a sloping roof covered with
bituminous tiles

Technical description:
Materials of the support system:
A- Aluminium
E- Stainless steel
MC- Coated structural steel:
Magnelis®, MagiZinc®, PosMAC
System tested for strength.
Installation of holders with screws for roof rafters.

Arrangement of the modules:
· horizontal – H · vertical – V

Design versions:
– Panel mounting profile PAL40H40
– Panel mounting profile PAL30H32
– Panel mounting profile CWP40H35MC

Advantages:
– the shape of the holders ensures high stability of the system
– the elements are made of stainless steel and aluminium,
which guarantees very high corrosion resistance
– high stability of the system thanks to the aluminium profile
with a specially profiled section

Warranty
BAKS provides a 10 year warranty period for the components
included in the support structure only if all conditions of the
manufacturer’s warranty are met

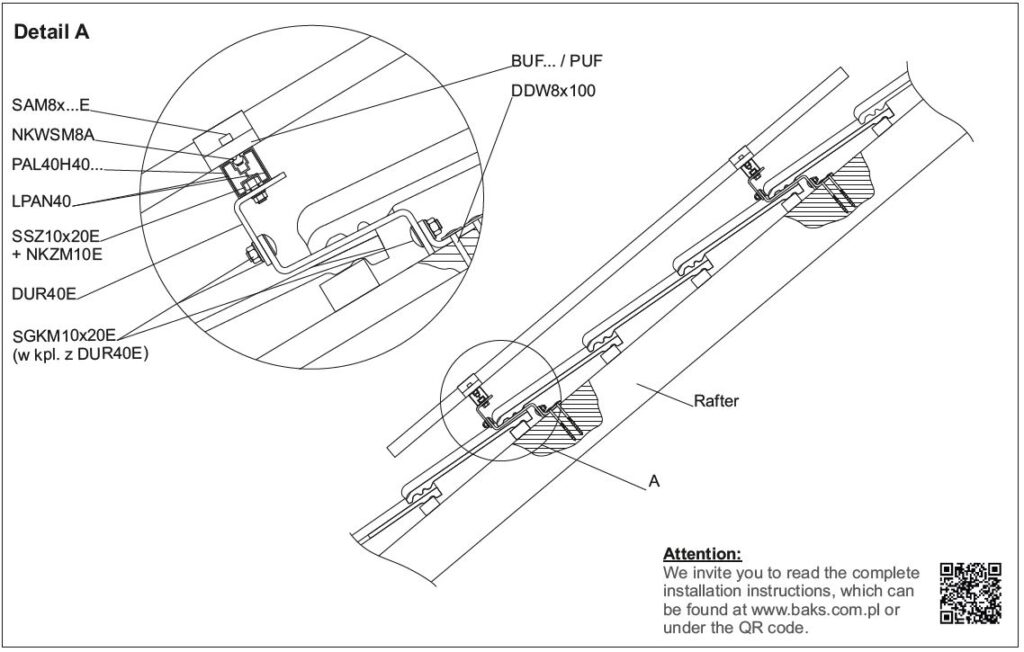

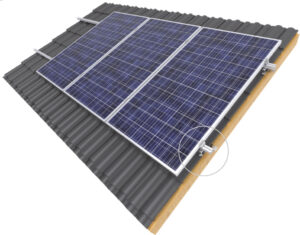

System: DS-V4N on sloping roofs covered with bituminous tiles

Installation manual for download – DS-V4N

Structure description
Complete support system for any number of PV panels in
a vertical arrangement on a sloping roof covered with
ceramic tiles

Technical description:
Materials of the support system:
A- Aluminium
E- Stainless steel
MC- Coated structural steel:
Magnelis®, MagiZinc®, PosMAC
System tested for strength.
Installation of holders with screws for roof rafters.

Arrangement of the modules:
· horizontal – H · vertical – V

Advantages:
– wide adjustment range of the holders thanks to longitudinal holes in each of the 3 elements of the holder
– dense perforation in the part directly adjacent to the roof truss ensure that the holder can be adjusted and correctly positioned in relation to the tiles so that the hook is in the middle of the tile mounted below
– elongated middle arm of the holder allows the hooks to be mounted on the majority of ceramic and concrete roof tiles available on the market
– the elements are made of stainless steel and aluminium, which guarantees very high corrosion resistance
– high stability of the system thanks to the aluminium profile with a specially profiled section

Warranty
BAKS provides a 10 year warranty period for the components
included in the support structure only if all conditions of the
manufacturer’s warranty are met

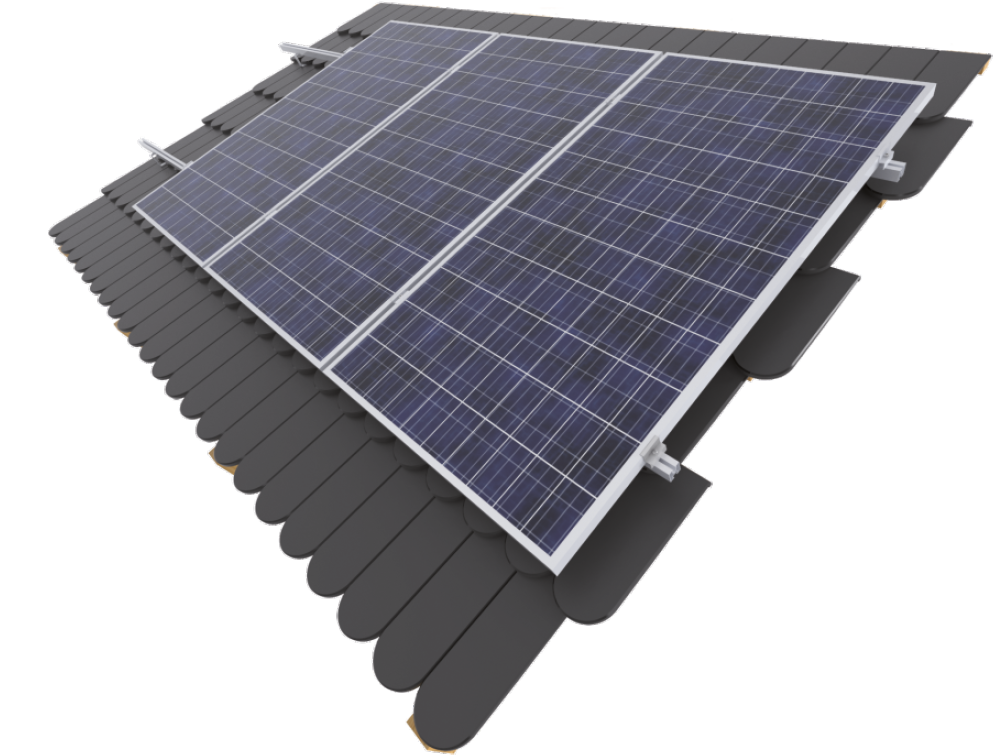

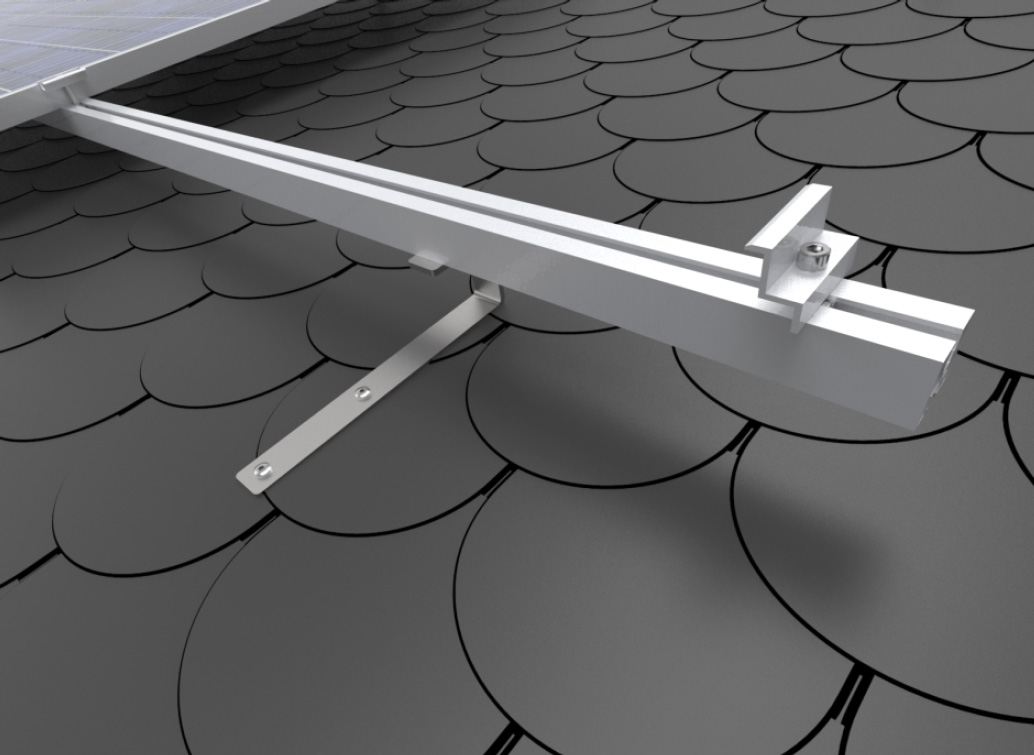

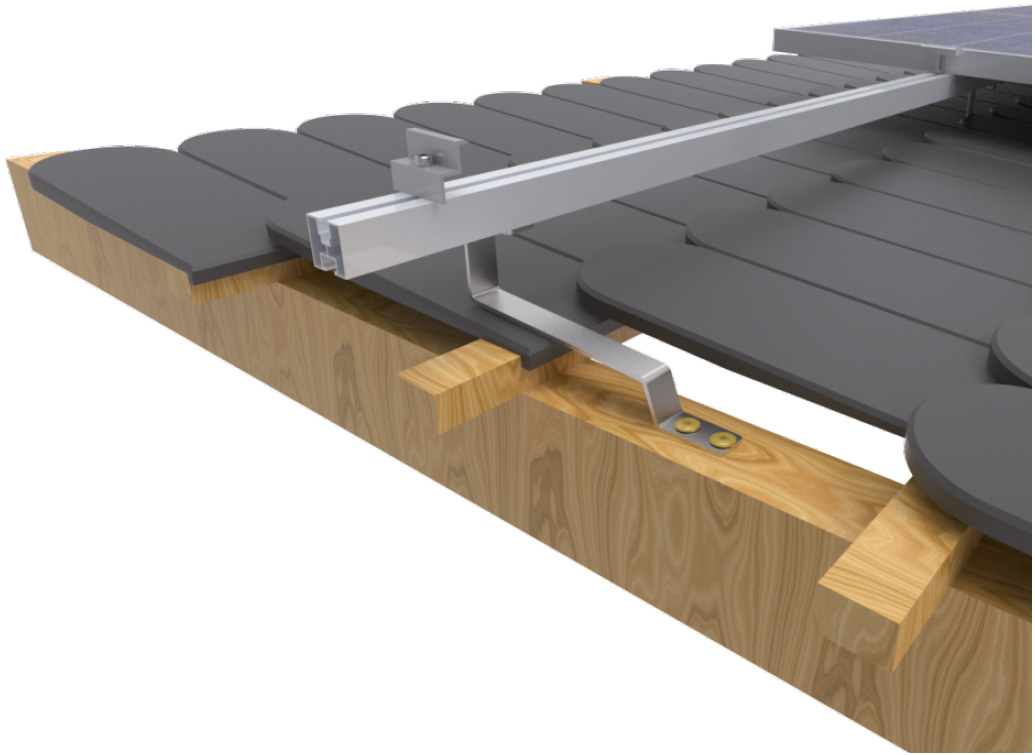

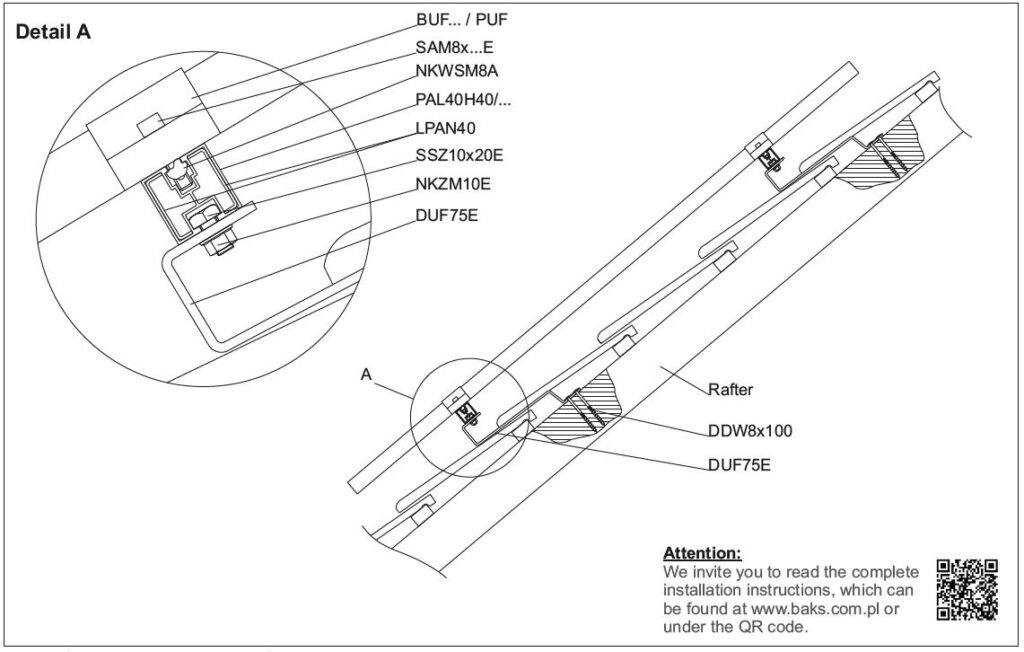

System: DS-V5N on sloping roofs covered with scale-shaped tiles

Installation manual for download – DS-V5N

Structure description
Complete support system for any number of PV panels in
a vertical arrangement on a sloping roof covered with
scale-shaped tiles

Technical description:
Materials of the support system:
A- Aluminium
E- Stainless steel
MC- Coated structural steel:
Magnelis®, MagiZinc®, PosMAC
System tested for strength.
Installation of holders with screws for roof rafters.
Recommended spacing between holders 0,8 – 1 m.

Arrangement of the modules:
· horizontal – H · vertical – V

Design versions:
– Panel mounting profile PAL40H40
– Panel mounting profile PAL30H32
– Panel mounting profile CWP40H35MC

Advantages:
– elongated arm of the holder allows the hooks to be mounted on the majority of ceramic and concrete roof tiles available on the market
– the elements are made of stainless steel and aluminium, which guarantees very high corrosion resistance
– high stability of the system thanks to the aluminium profile with a specially profiled section

Warranty
BAKS provides a 10 year warranty period for the components included in the support structure only if all conditions of the
manufacturer’s warranty are met

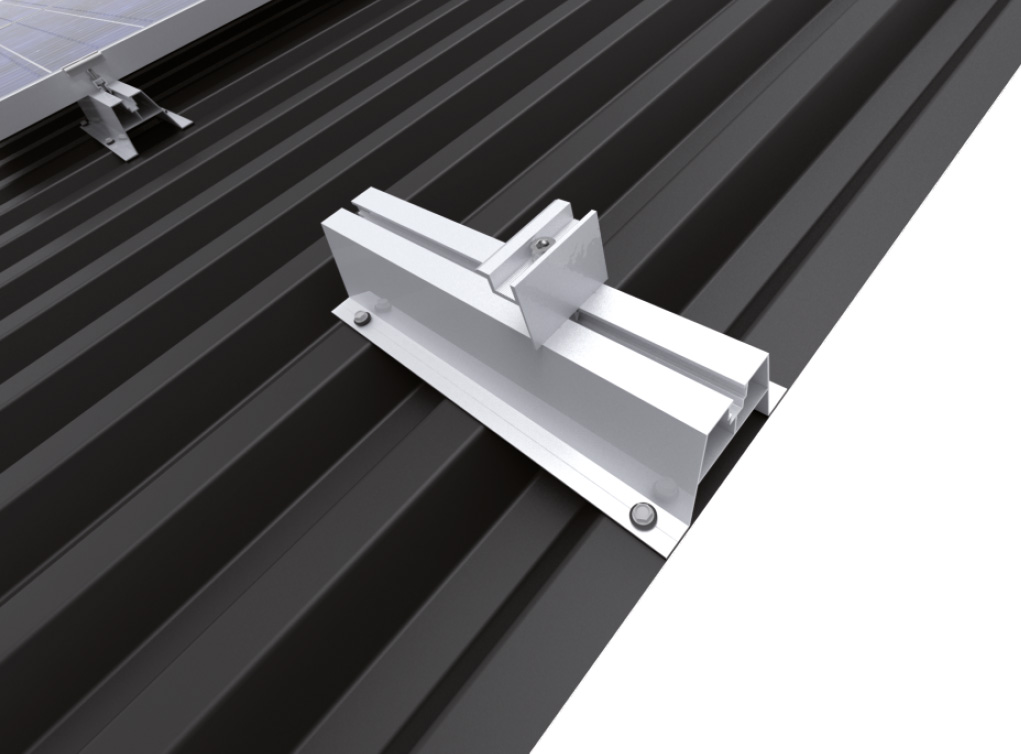

System: DS-V6aN on sloping roofs covered with trapezoidal metal sheets - high rail

Installation manual for download – DS-V6aN

Structure description
Complete support system for any number of PV panels in
a vertical arrangement on a sloping roof covered with
trapezoidal metal sheets

Technical description:
Materials of the support system:
A- Aluminium
E- Stainless steel
MC- Coated structural steel:
Magnelis®, MagiZinc®, PosMAC
System tested for strength.

Arrangement of the modules:
· horizontal – H · vertical – V

Advantages:
– quick installation of the system with threaded screws directly to the trapezoidal metal sheets without the need to locate the rafters
– very economical design with a small number of components
– the elements are made of stainless steel and aluminium, which guarantees very high corrosion resistance
– high stability of the system thanks to the aluminium profile with a specially profiled section

Warranty
BAKS provides a 10 year warranty period for the components
included in the support structure only if all conditions of the
manufacturer’s warranty are met

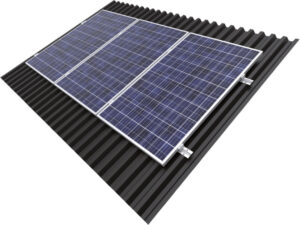

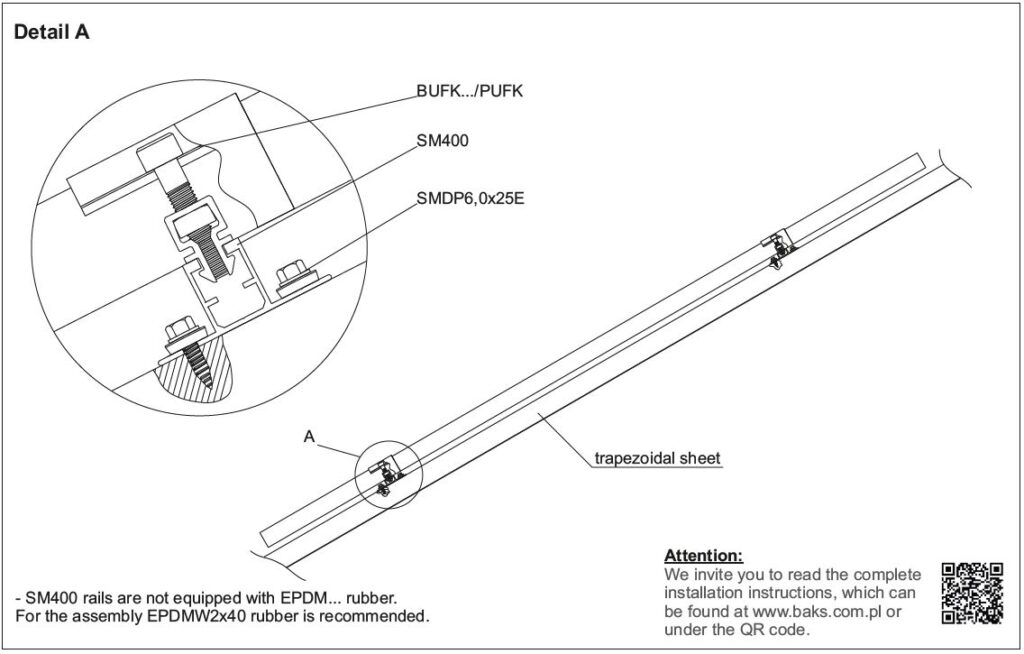

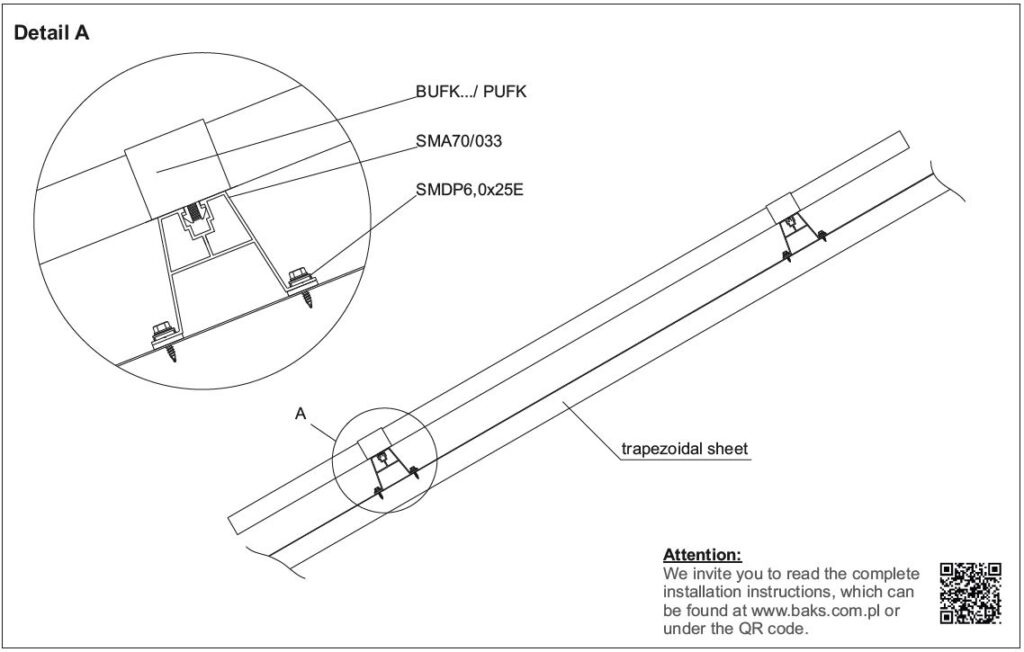

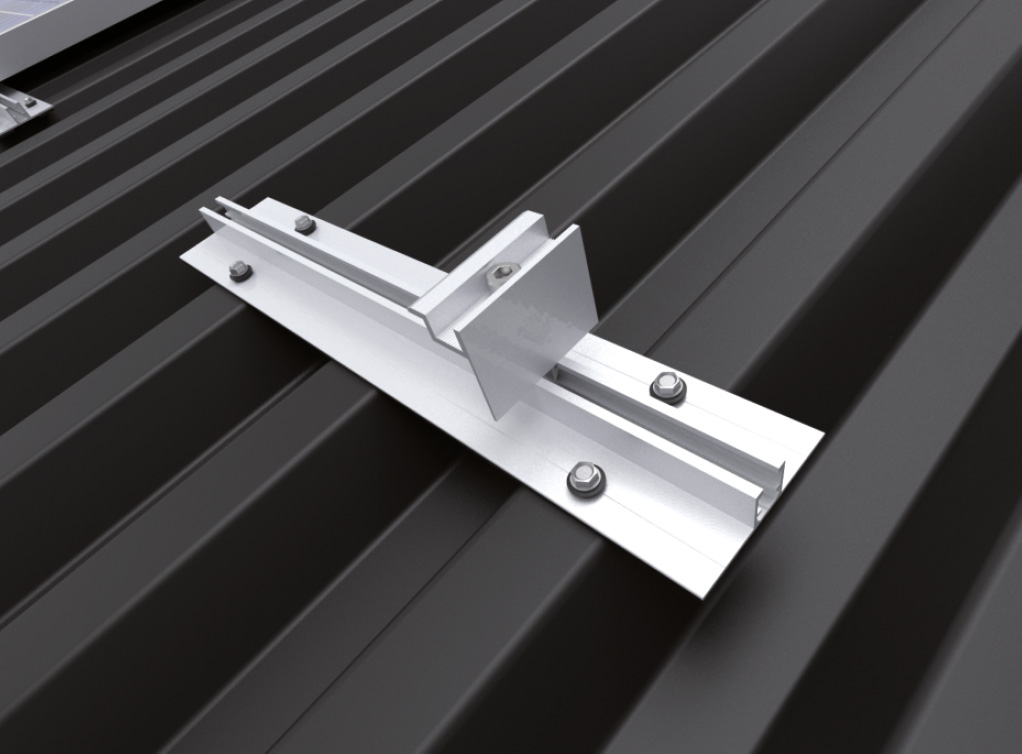

System: DS-V6bN on sloping roofs covered with trapezoidal metal sheets - low rail

Instrukcja montażu konstrukcji DS-V6bN do pobrania – DS-V6bN

Structure description
Complete support system for any number of PV panels in
a vertical arrangement on a sloping roof covered with
trapezoidal metal sheets

Technical description:
Materials of the support system:
A- Aluminium
E- Stainless steel
MC- Coated structural steel:
Magnelis®, MagiZinc®, PosMAC
System tested for strength.

Arrangement of the modules:
· horizontal – H · vertical – V

Advantages:
– quick installation of the system with threaded screws directly to the trapezoidal metal sheets without the need to locate the rafters
– very economical design with a small number of components
– the elements are made of stainless steel and aluminium, which guarantees very high corrosion resistance
– high stability of the system thanks to the aluminium profile with a specially profiled section

Warranty
BAKS provides a 10 year warranty period for the components included in the support structure only if all conditions of the
manufacturer’s warranty are met

System: DS-V6cN on sloping roofs covered with trapezoidal metal sheets

Installation manual for download – DS-V6cN

System description
Complete support system for any number of PV panels
in a vertical arrangement on a sloping roof covered with
trapezoidal metal sheets.

Technical description:
Materials of the support system:
A- Aluminium
E- Stainless steel
MC- Coated structural steel:
Magnelis®, MagiZinc®, PosMAC
System tested for strength.

Arrangement of the modules:
· horizontal – H · vertical – V

Design versions:

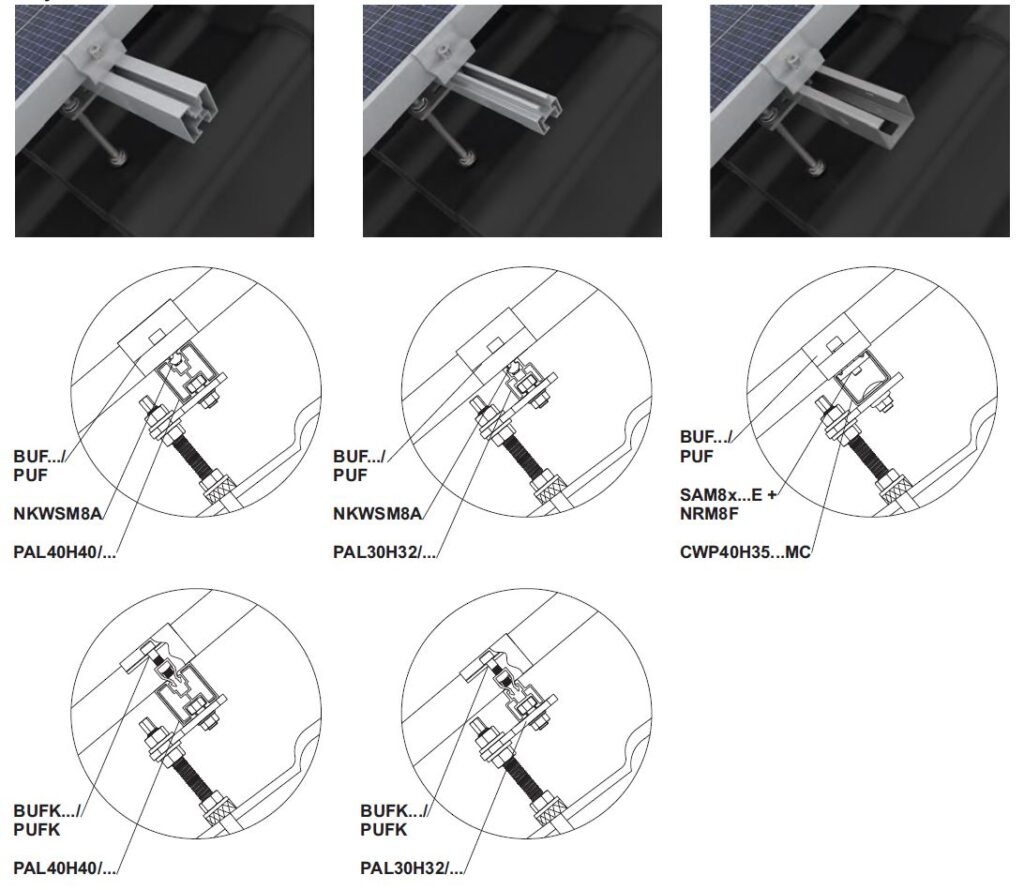

– Panel mounting profile PAL40H40
– Panel mounting profile PAL30H32
– Panel mounting profile CWP40H35MC

Advantages:
– quick installation of the system with threaded screws directly to the trapezoidal metal sheets without the need to locate the rafters
– very economical design with a small number of components
– the elements are made of stainless steel and aluminium, which guarantees very high corrosion resistance
– high stability of the system thanks to the aluminium profile with a specially profiled section
– holder suitable for different types of trapezoidal metal sheets

Warranty
BAKS provides a 10 year warranty period for the components included in the support structure only if all conditions of the
manufacturer’s warranty are met

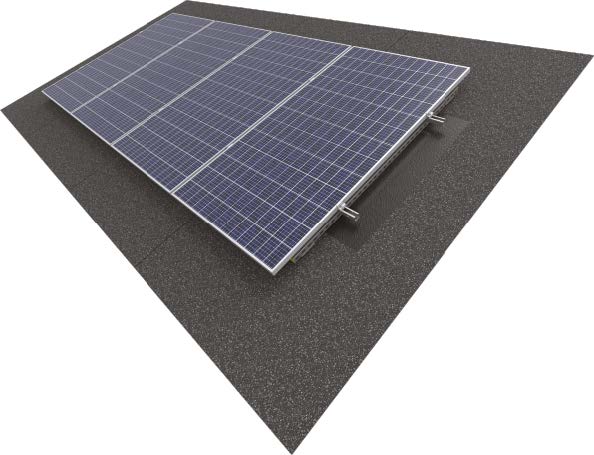

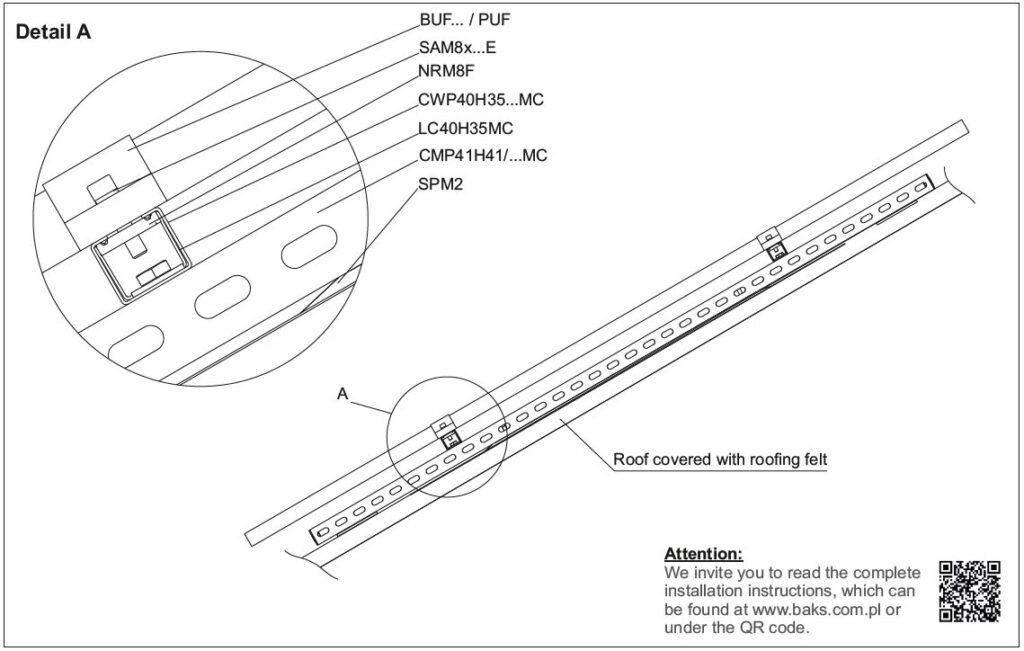

System: DS-V7N on a inclined roof covered with roofing felt or membrane

System: DS-V7N on a inclined roof covered with roofing felt or membrane – DS-V7N

System description
Complete support system for any number of PV panels
in a vertical arrangement on a sloping roof covered with
trapezoidal metal sheets.

Technical description:
Materials of the support system:
A- Aluminium
E- Stainless steel
MC- Coated structural steel:
Magnelis®, MagiZinc®, PosMAC
System tested for strength.

Arrangement of the modules:
· horizontal – H · vertical – V

Advantages:
– quick installation and low price
– strength-tested system
– made of sheet metal with coating: Magnelis®, MagiZinc®, PosMAC
– smooth adjustment of profile spacing
– no interference with roof sheathing
– very economical design with a small number of components
– very high corrosion resistance

Warranty
BAKS provides a 10 year warranty period for the components
included in the support structure only if all conditions of the
manufacturer’s warranty are met

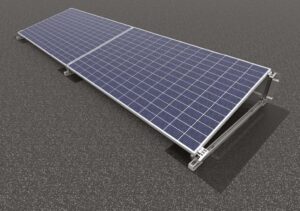

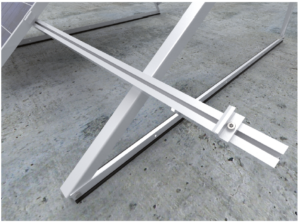

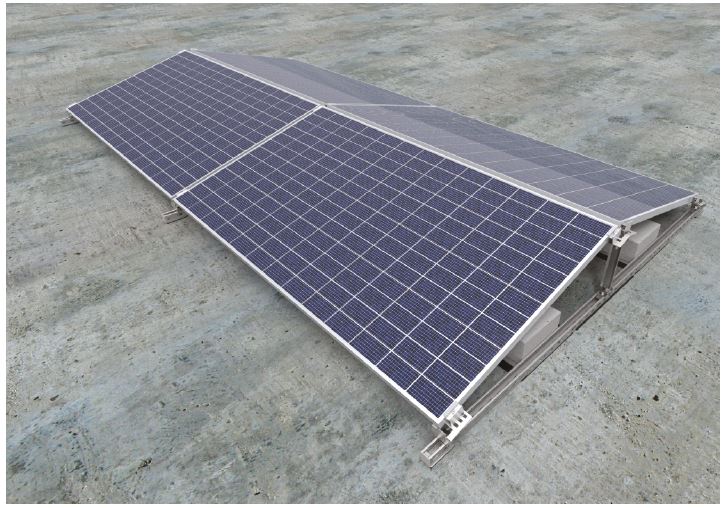

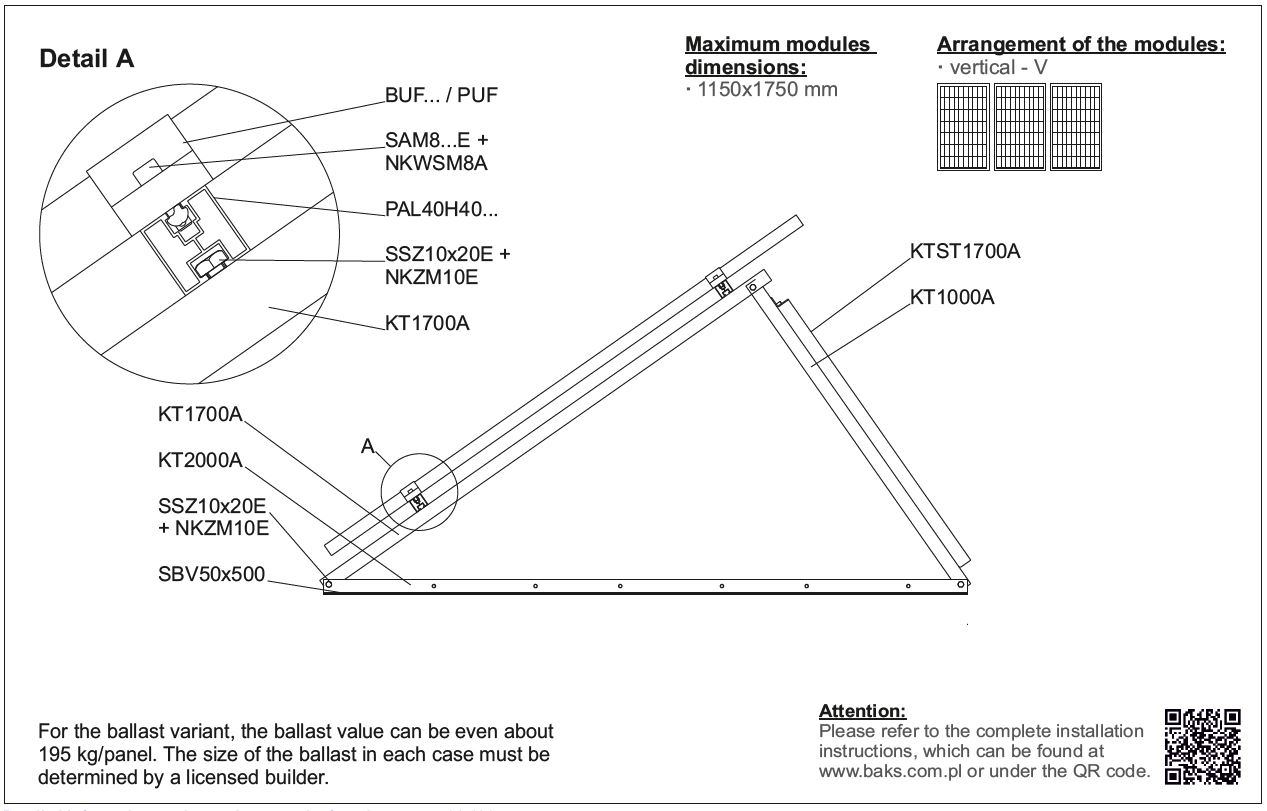

Flat roof

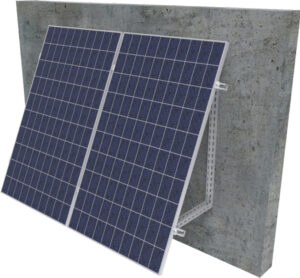

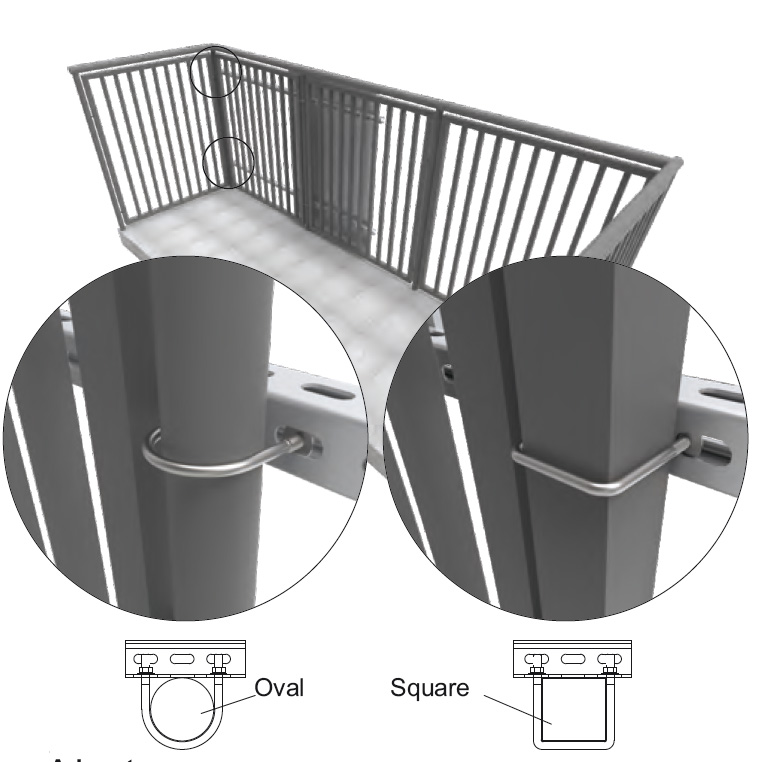

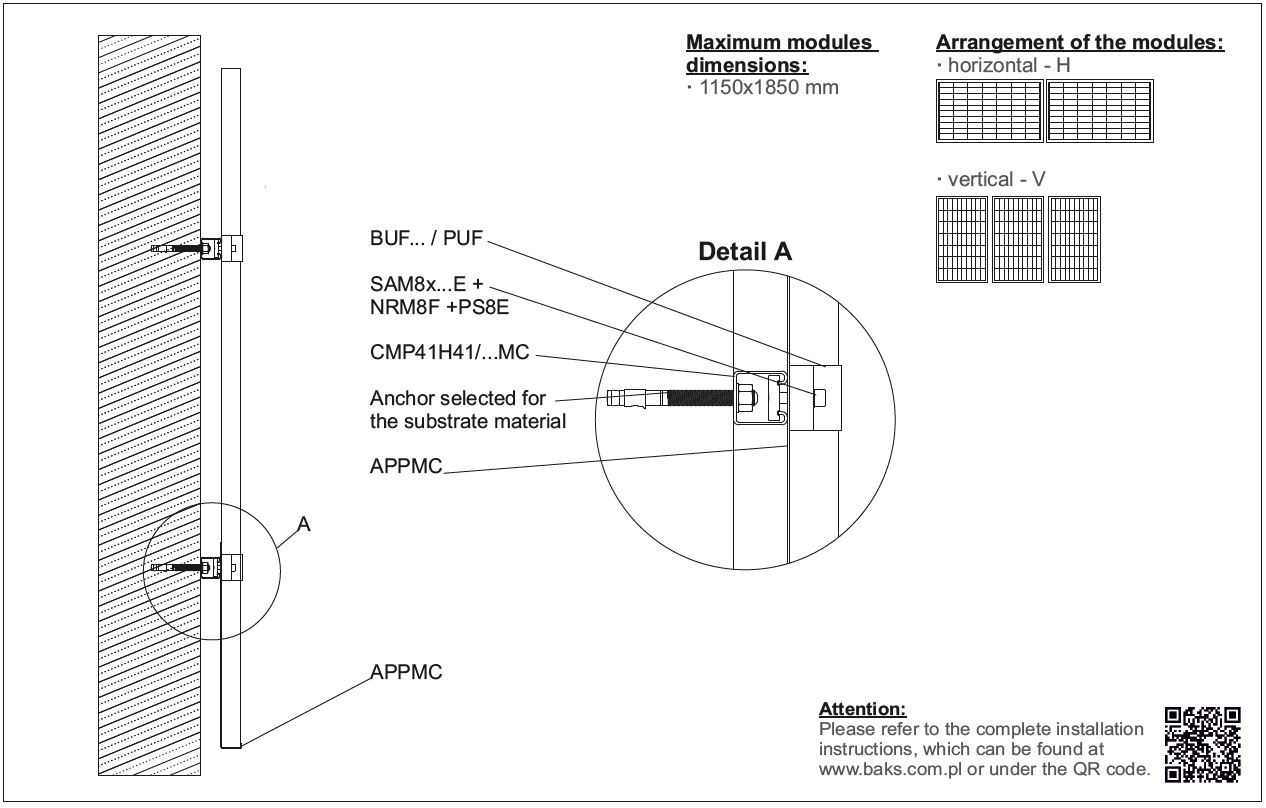

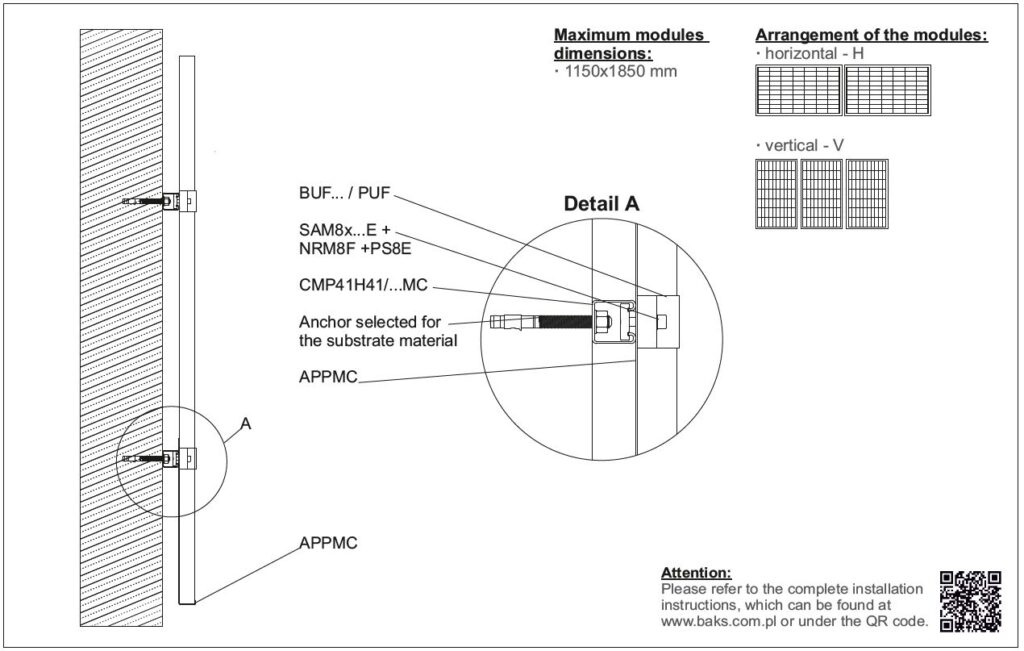

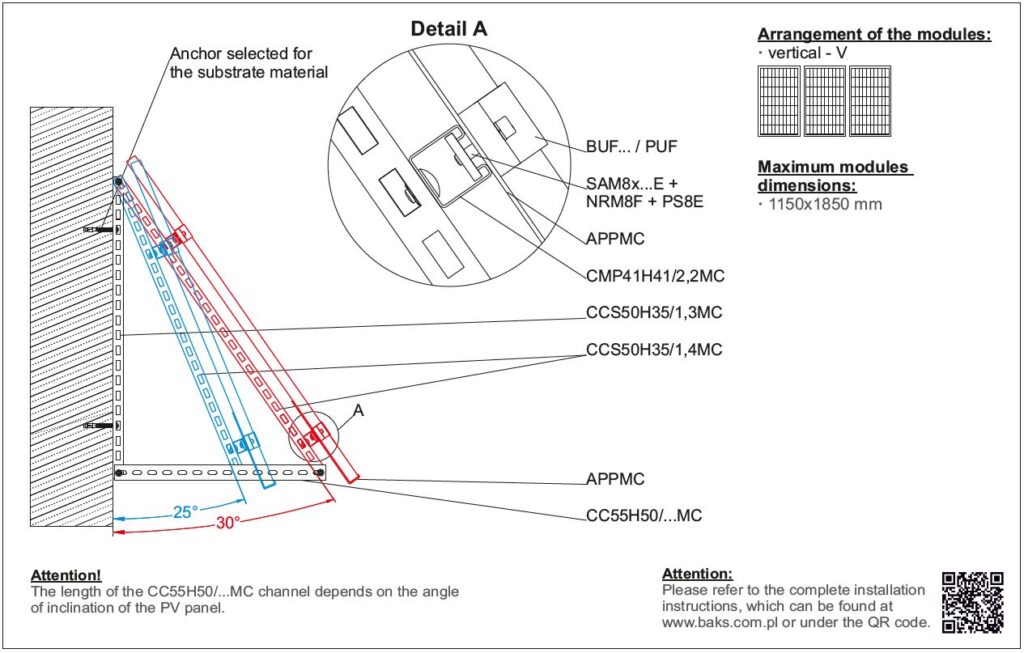

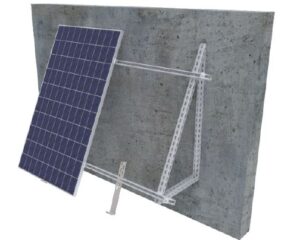

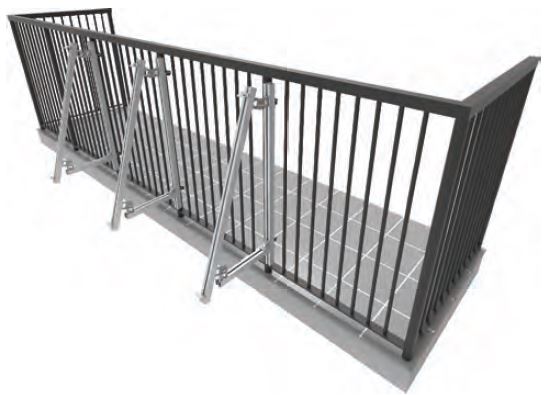

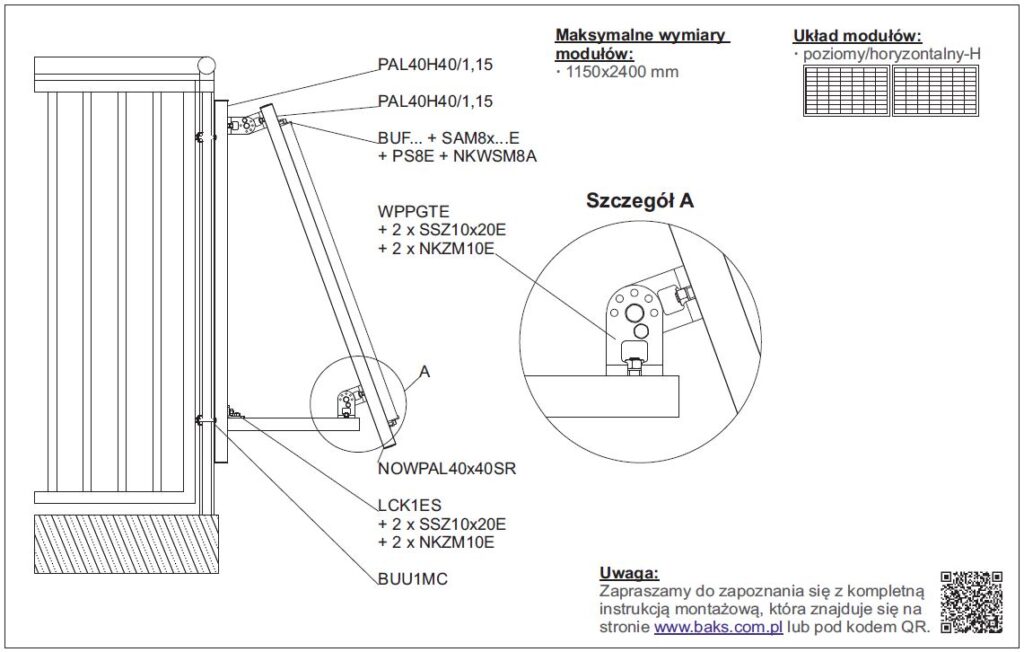

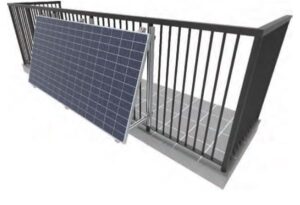

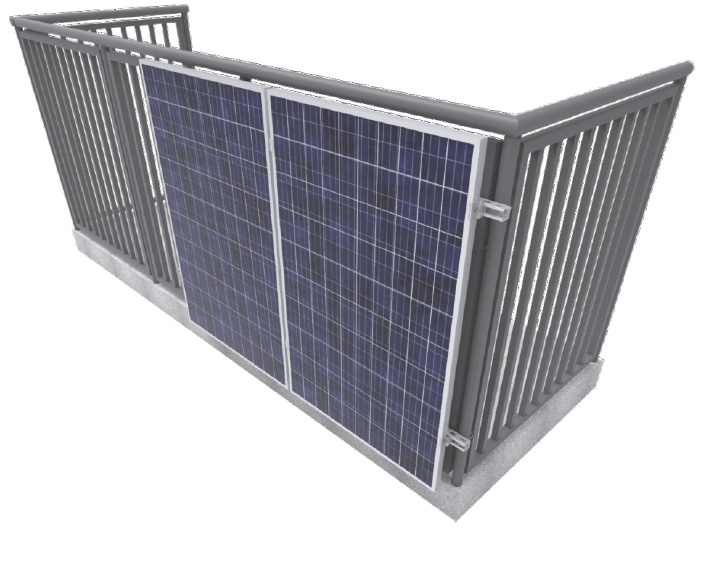

Advantages of the systems for mounting photovoltaic panels on flat roofs, building elevations and balcony railings

– systems available in steel in Magnelis® coating and aluminium
– universal systems for flat roofs that can be fixed directly to the roofing with: anchors, boards heated to the membrane or the roofing felt, or used as ballast systems
– variable adjustment and longitudinal perforation of the system components allows for trouble-free and quick installation of the system even in case of unevenness on the roof
– perforation in the wind shields allows for easy and quick installation even after the photovoltaic panels have been installed
– universal wind shields allow for quick installation and there is no need to order shields with dimensions dedicated to a given panel
– specially designed profile of the wind shields ensures stable adhesion to the system, and after using additional pressure plates, even strong wind does not cause vibration
– the dimensions of the wind shields are adapted to various types of panels, thanks to which their installation does not require drilling

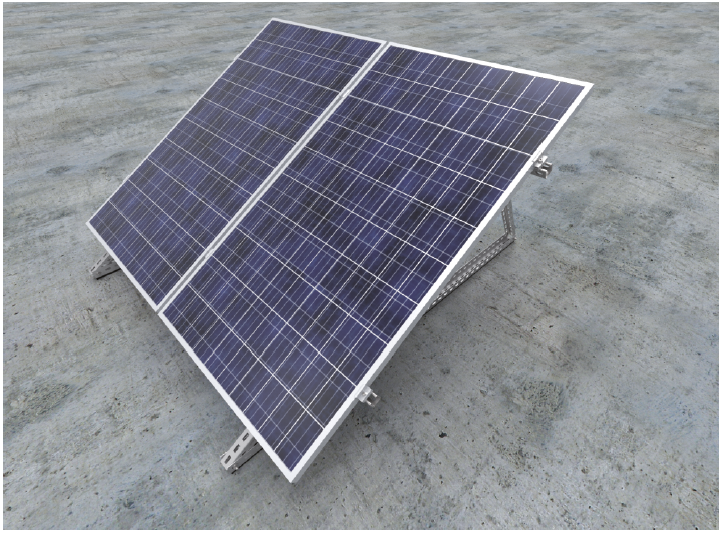

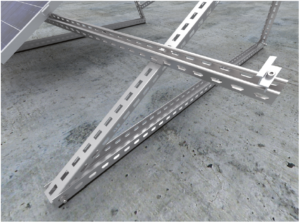

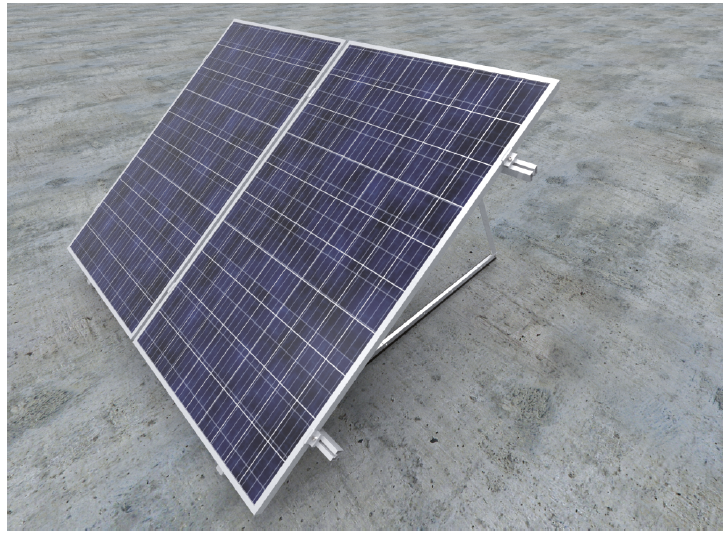

– triangular systems made of channels allow the panels to be mounted to steel profiles in the Magnelis® coating and to aluminium profiles
– products made in Poland!

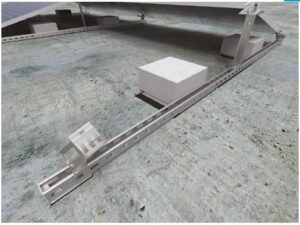

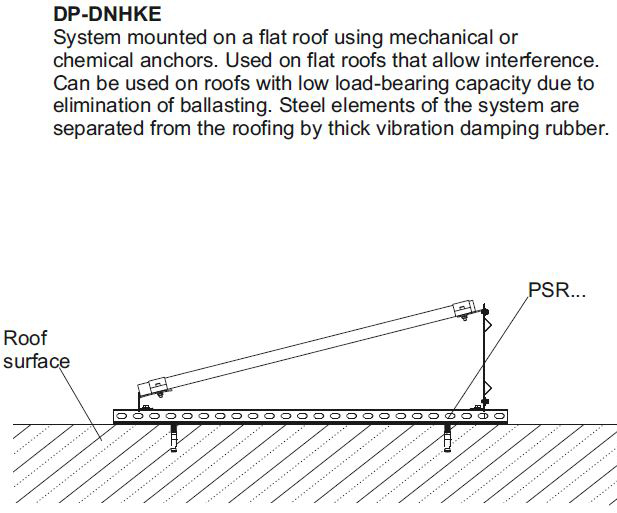

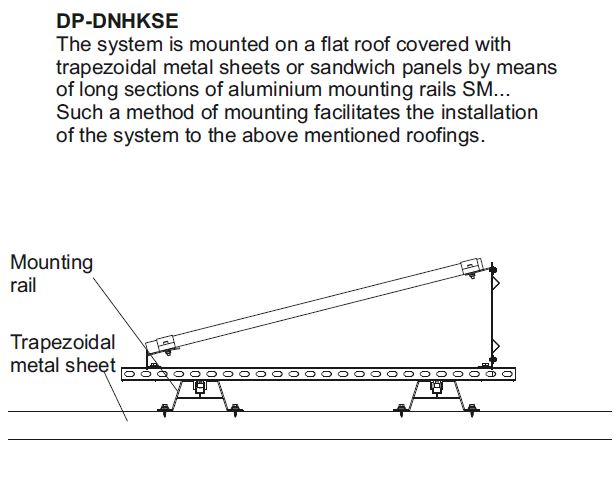

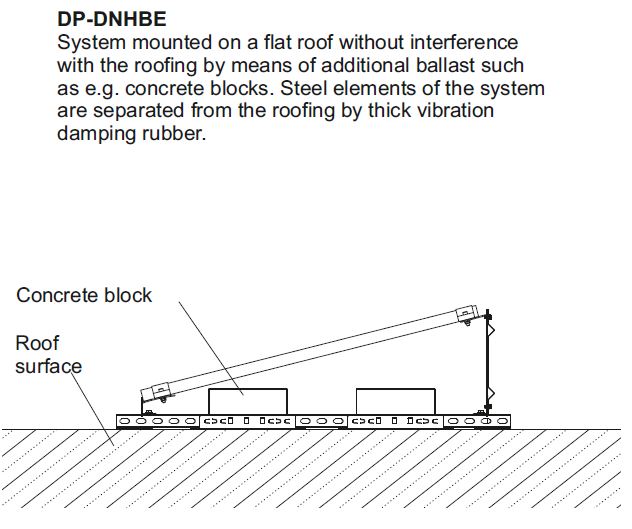

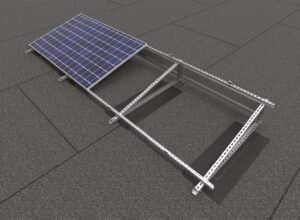

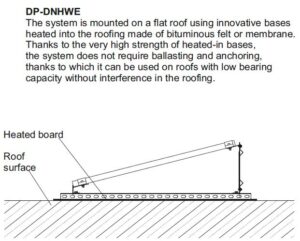

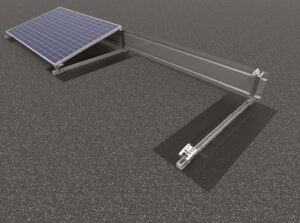

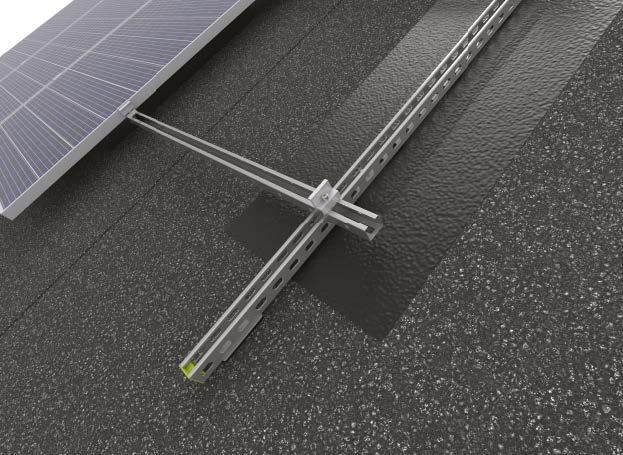

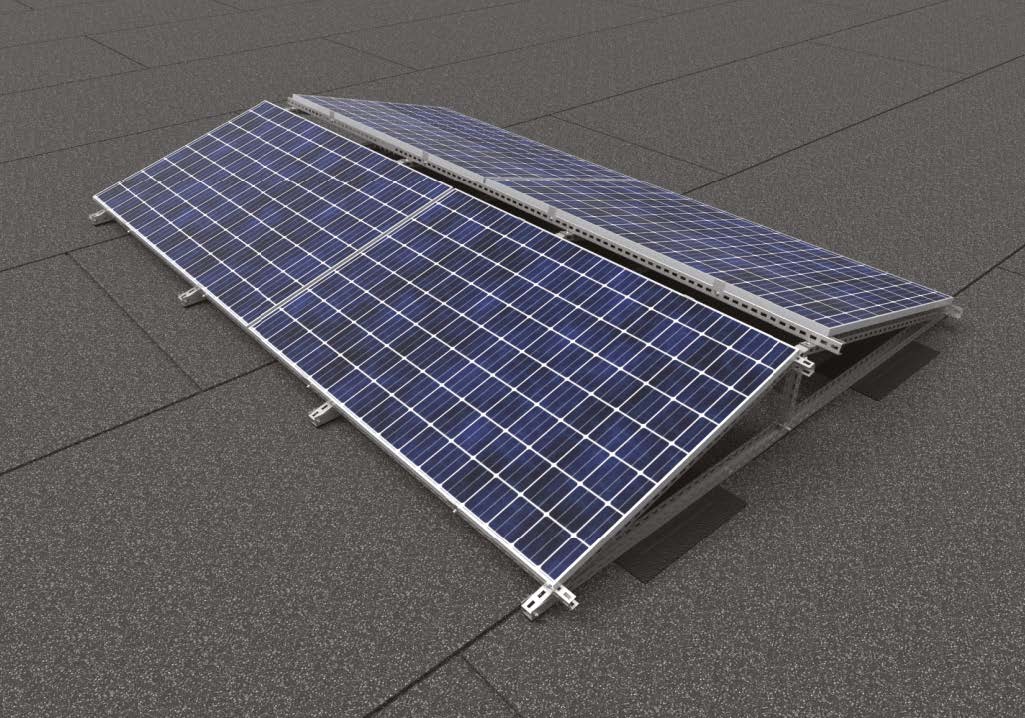

Recomended ways of mounting flat systems

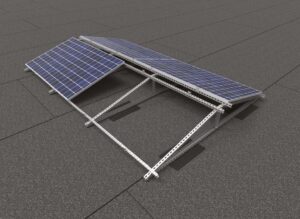

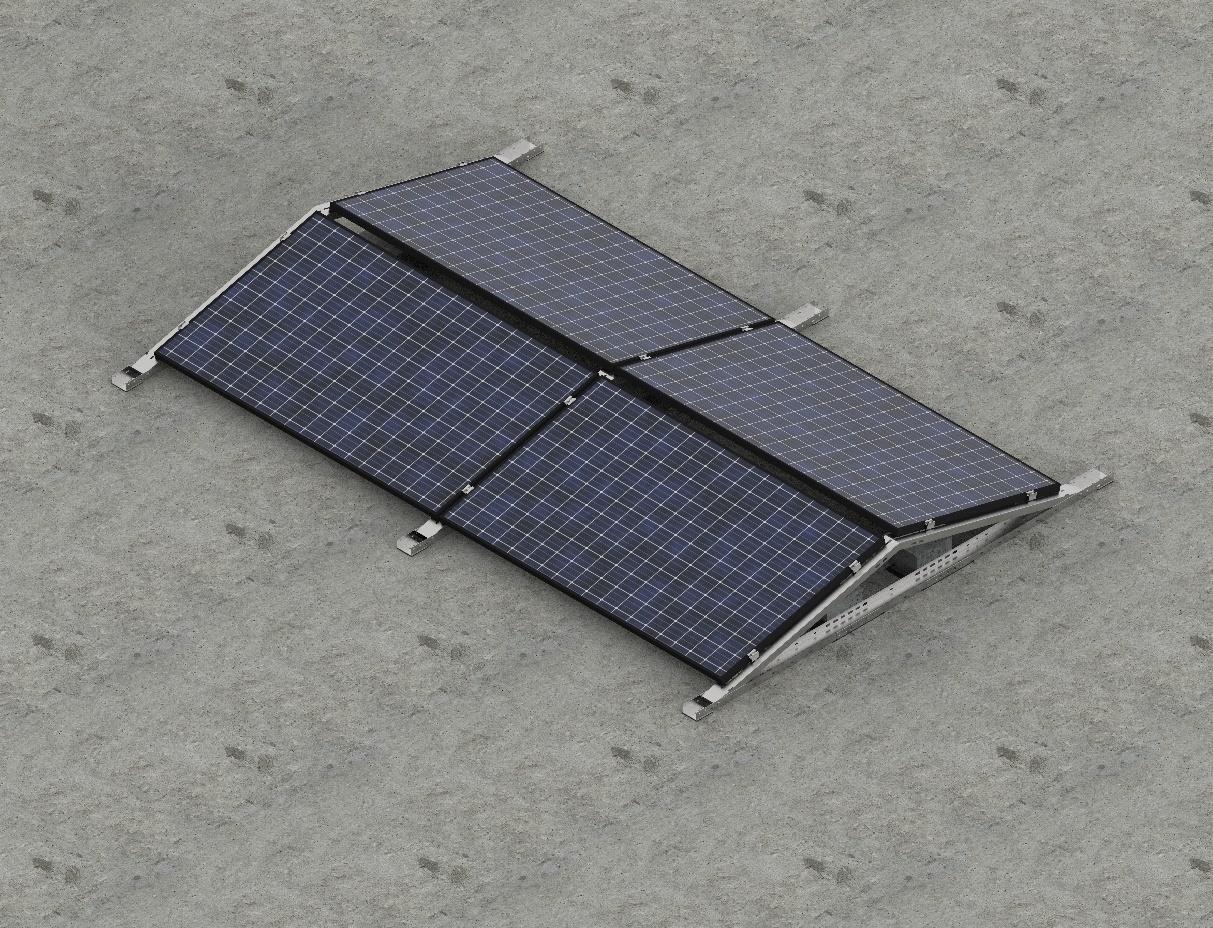

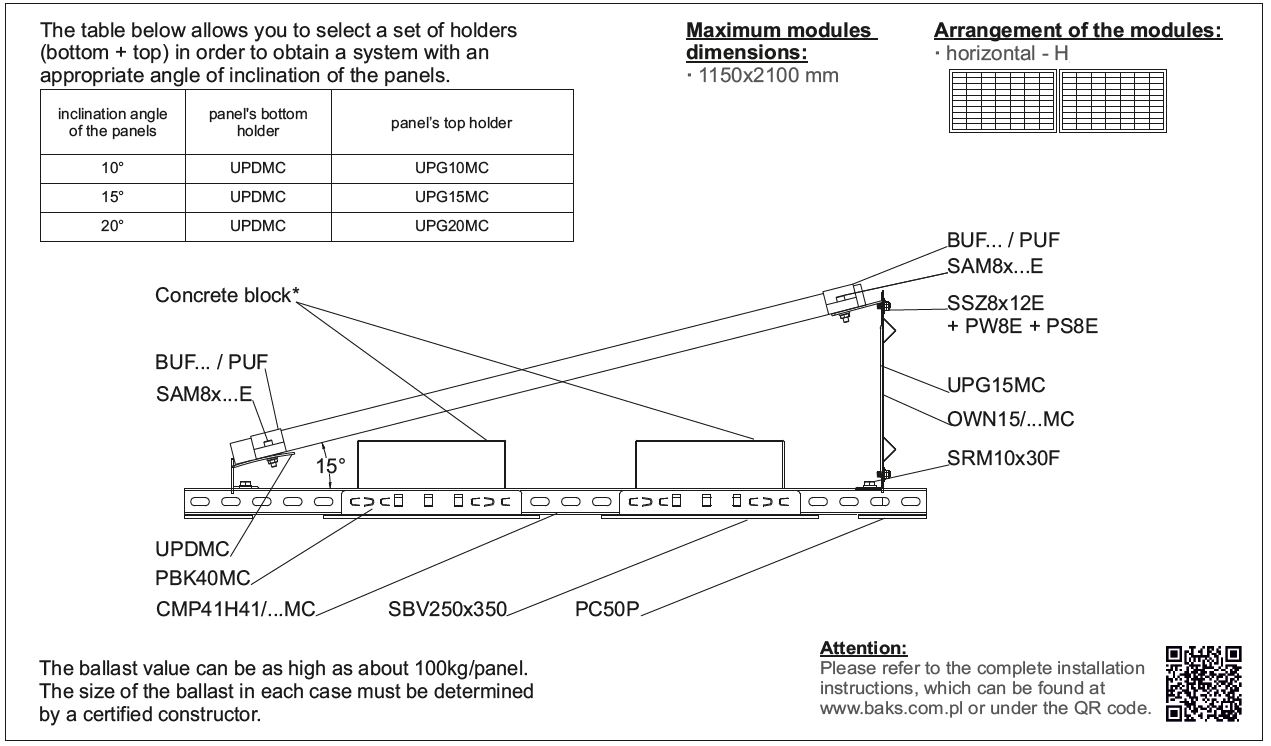

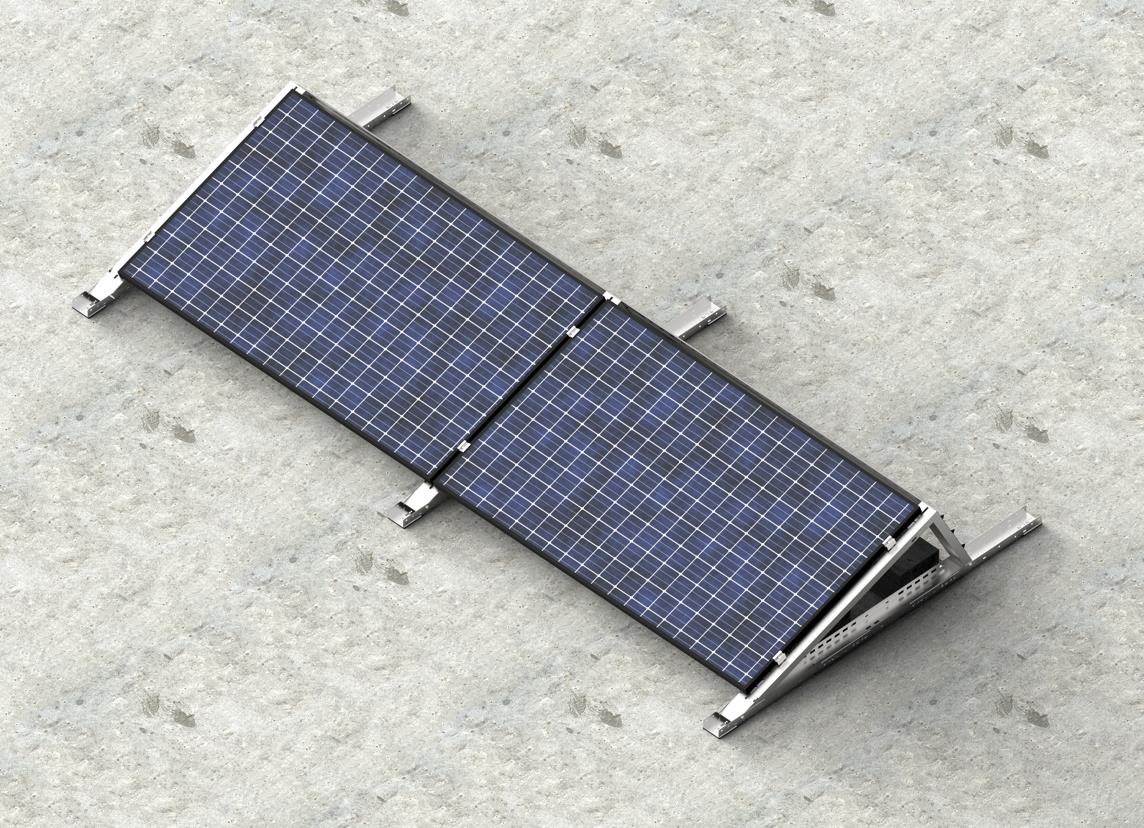

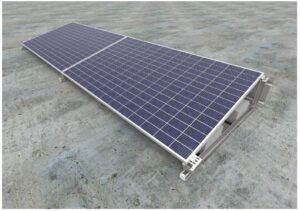

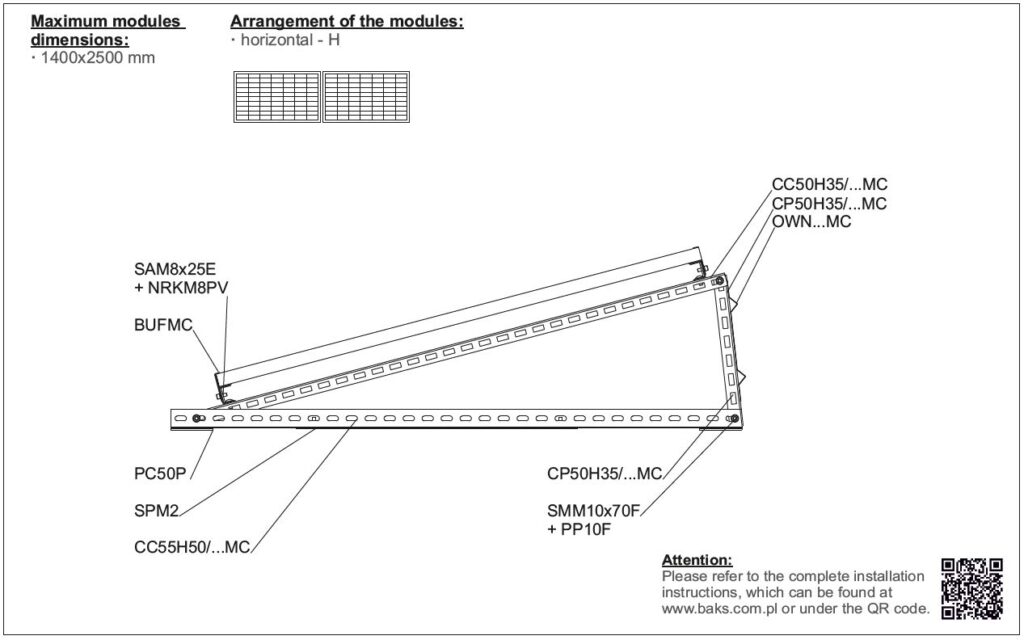

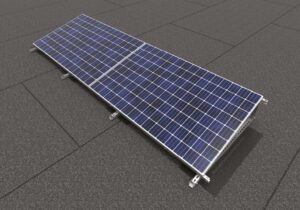

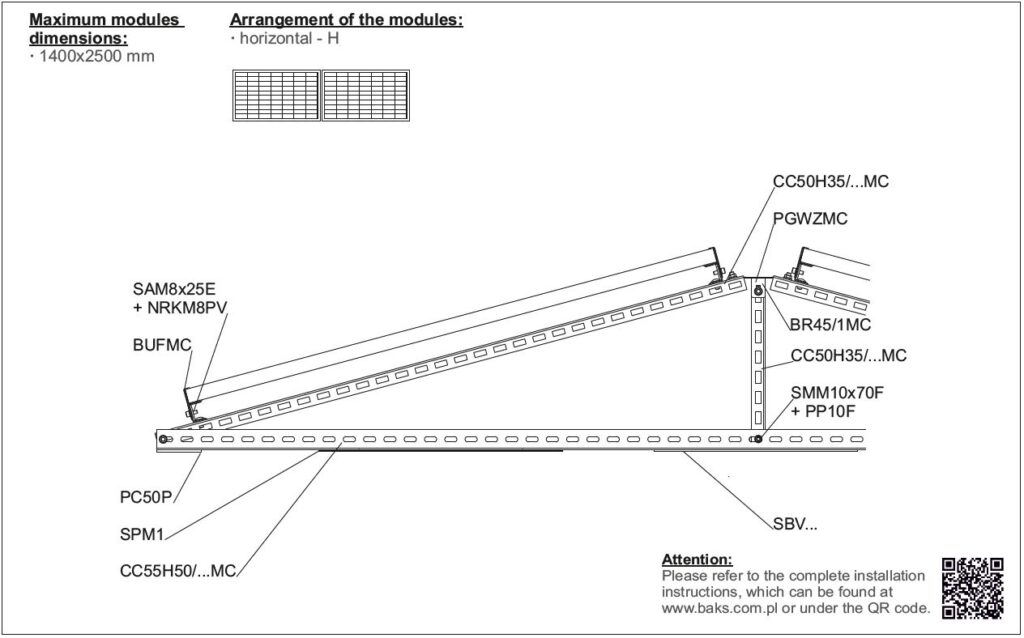

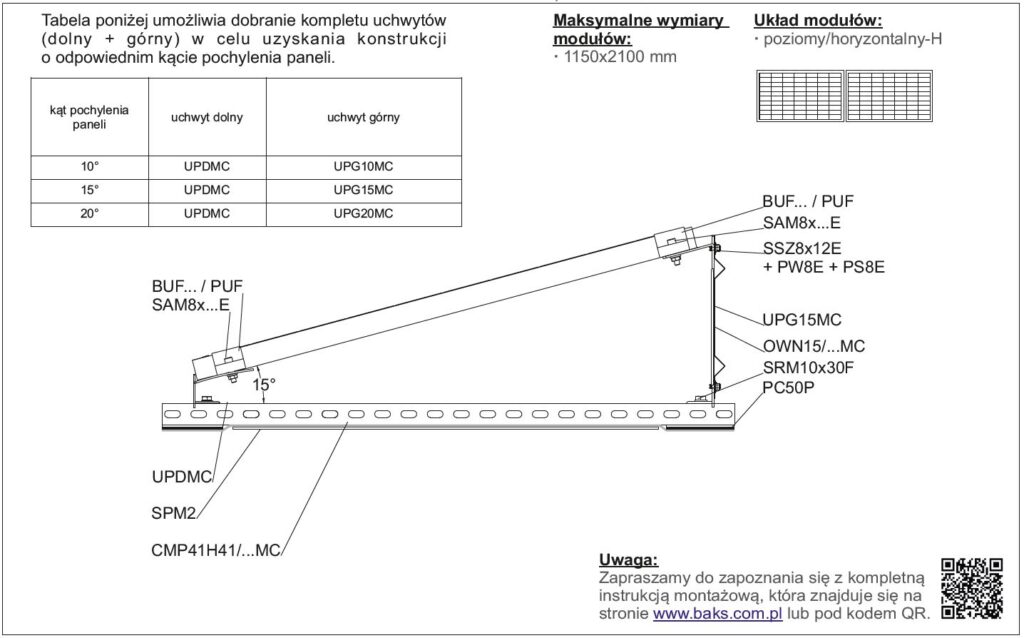

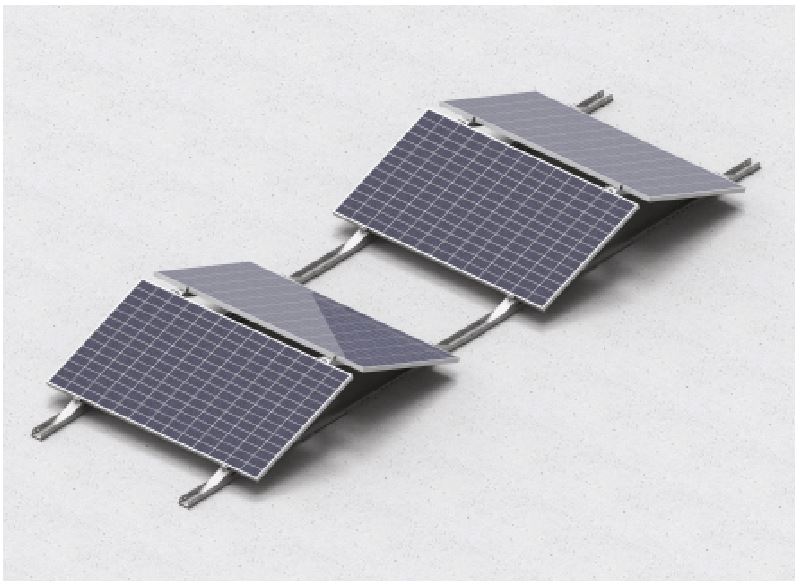

System: DP-DTH...S (10°, 15°, 20°)

Opis konstrukcji
Kompletny system wsporczy umożliwiający zamocowanie paneli w układzie horyzontalnym pod kątem 10, 15 i 20° na dachu płaskim. System DP-DTH…S umożliwia montaż paneli bez naruszania poszycia dachu dzięki obciążeniu konstrukcji bloczkami betonowymi.
Konstrukcja umożliwia montaż paneli fotowoltaicznych po krótkim boku (dla paneli o długości do 2100 mm) oraz po długim boku.

Opis techniczny:
Materiały systemu wsporczego:
MC- Stal konstrukcyjna w powłoce:
Magnelis®, MagiZinc®, PosMAC
A- Aluminium
E- Stal nierdzewna
F- Stal cynkowana metodą cynku płatkowego
Konstrukcja przebadana pod kątem wytrzymałościowym.

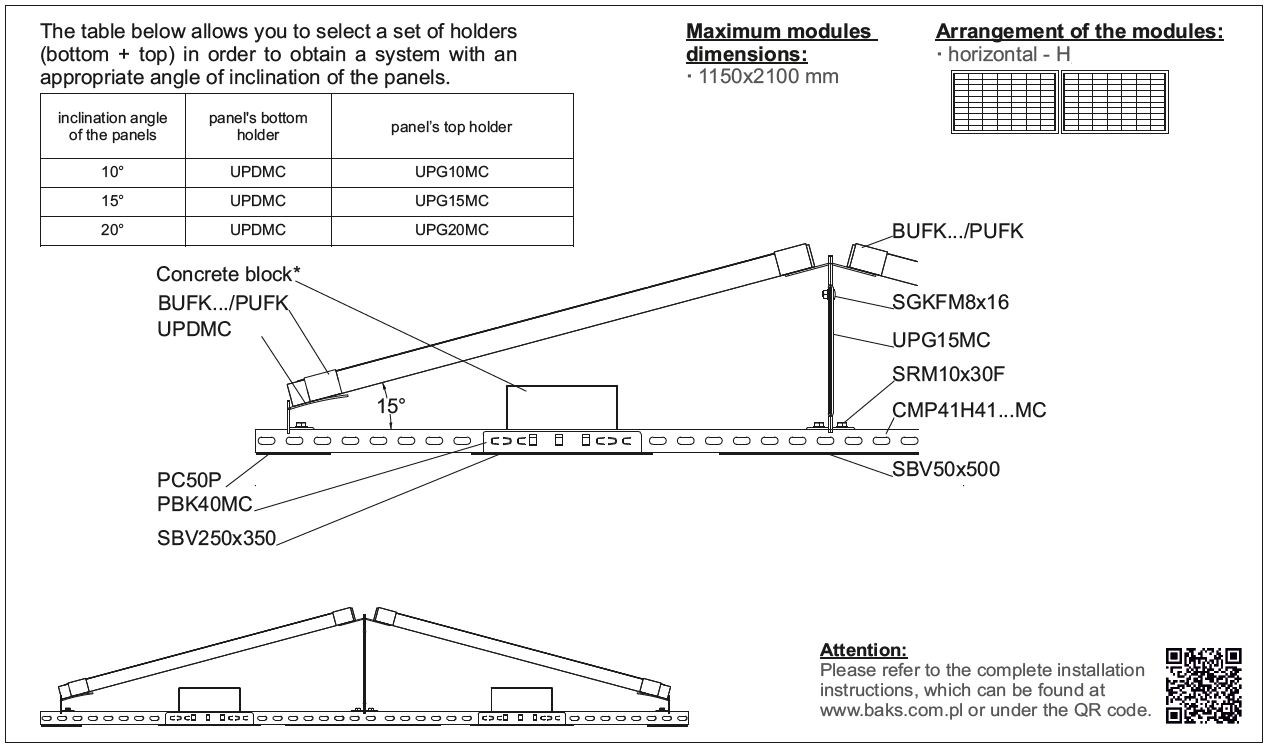

Warianty montażowe konstrukcji:
• kotwiona do dachu – DP-DTHKS
• balastowa – DP-DTHBS
• zgrzewana – DP-DTHWS
• szyny aluminiowe – DP-DTHKSS

Zalety:

• konstrukcja przebadana pod kątem wytrzymałościowym

• szybki montaż, ze względu na ograniczoną liczbę elementów

• możliwość łączenia kolejnych rzędów – w przypadku konstrukcji balastowej zmniejsza to znacznie wymagany ciężar balastu

• możliwość mocowania paneli bezklemowo śrubami do dedykowanych otworów lub za pomocą klem KLIK

• specjalne zaprojektowane ząbki zapewniają ciągłość elektryczną między konstrukcją a ramami paneli

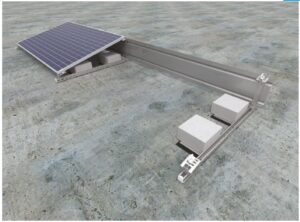

• 3 możliwości ułożenia balastu: kostki brukowe układane w dolnych ceownikach, bloczki betonowe układane na zatrzaskowych regulowanych stopach balastowych, bloczki betonowe układane w blaszanych korytach wzdłuż paneli

• konstrukcja umożliwia montaż paneli o dowolnej długości i szerokości do 1150 mm

• 3 stopniowa regulacja kąta pochylenia paneli z oznaczeniem kąta na dolnym profilu – 10°, 15°, 20°

• aerodynamiczny kształt konstrukcji z osłonami wiatrowymi znacznie zmniejsza wymagany ciężar balastu

• 3 stopniowa regulacja odległości podniesienia konstrukcji od dachu: 19, 26 i 33 mm
